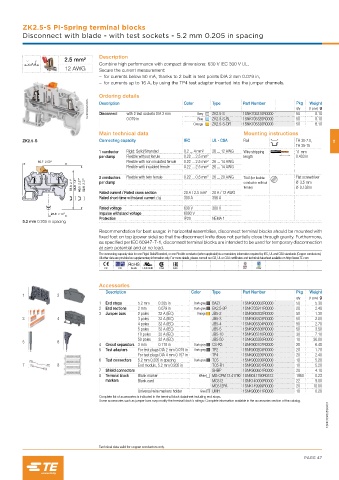

Page 49 - Railways Applications Terminal blocks

ZK2.5-S PI-Spring terminal blocks
Disconnect with blade - with test sockets - 5.2 mm 0.205 in spacing

Description
2.5 mm²
Combine high performance with compact dimensions: 630 V IEC 300 V UL.
12 AWG Secure the current measurement:
– for currents below 50 mA, thanks to 2 built in test points DIA 2 mm 0.079 in,
– for currents up to 16 A, by using the TP4 test adapter inserted into the jumper channels.

Ordering details
1SNK162085V0014 Description with 2 test sockets DIA 2 mm Color Grey Type Part Number Pkg (1 pce) g
Weight
qty
Disconnect
8.10
1SNK705310R0000
50
ZK2.5-S
0.079 in
Blue
50
ZK2.5-S-OR
8.10
1SNK705330R0000
Orange ZK2.5-S-BL 1SNK705320R0000 50 8.10
Main technical data Mounting instructions
ZK2.5-S Connecting capacity IEC UL - CSA Rail TH 35-7.5, 2
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
per clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
65.7 2.59" Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
2 conductors Flexible with twin ferrule 0.22 ... 0.5 mm² 26 ... 20 AWG Tool (for flexible Flat screwdriver
53.3 2.1" 45.8 1.8" 60.1 2.37" 52.6 2.07" per clamp conductor without Ø 3.5 mm
Ø 0.138 in
ferrule)
Rated current / Rated cross section 20 A / 2.5 mm² 20 A / 12 AWG
Rated short-time withstand current (1s) 300 A 396 A
Rated voltage 630 V 300 V
27.9 1.10" Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
5.2 mm 0.205 in spacing
Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted with
fixed foot on top (power side) so that the disconnect knife does not partially close through gravity. Furthermore,
as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary disconnection
at zero potential and at no load.
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV DNV
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.079 in Dark grey EK2.5-3P 1SNK705911R0000 20 2.40
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
5 6
4 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
5 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
6 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
7 8 End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
7 Shield connectors SHBP 1SNK900601R0000 20 4.10
8 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
1SNK162036S0201

Technical data valid for copper conductors only.
PAGE 47
