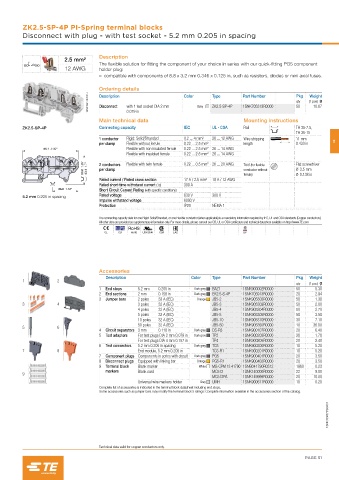

Page 53 - Railways Applications Terminal blocks

ZK2.5-SP-4P PI-Spring terminal blocks
Disconnect with plug - with test socket - 5.2 mm 0.205 in spacing

Description
2.5 mm²
The flexible solution for fitting the component of your choice in series with our quick-fitting PG5 component
12 AWG holder plug:
– compatible with components of 8.8 x 3.2 mm 0.346 x 0.125 in, such as resistors, diodes or mini axial fuses.

Ordering details
1SNK162106V0014 Description with 1 test socket DIA 2 mm Color Grey Type Part Number Pkg (1 pce) g
Weight
qty
ZK2.5-SP-4P
Disconnect
1SNK705313R0000
50
10.67
0.079 in
Main technical data Mounting instructions
ZK2.5-SP-4P Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm 2
per clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
86.1 3.39" Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
50.6 1.99" 43.1 1.7" 2 conductors Flexible with twin ferrule 0.22 ... 0.5 mm² 26 ... 20 AWG Tool (for flexible Flat screwdriver
per clamp
Ø 3.5 mm
conductor without
Rated current / Rated cross section 17 A / 2.5 mm² 18 A / 12 AWG ferrule) Ø 0.138 in
Rated short-time withstand current (1s) 300 A
38.8 1.53"
Short Circuit Current Rating (with specific conditions)
5.2 mm 0.205 in spacing Rated voltage 630 V 300 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.158 in Dark grey EK2.5-S-4P 1SNK705913R0000 20 2.94
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
5 6
4 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
5 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
6 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
7 8 End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
7 Component plugs Components in series with circuit Dark grey PG5 1SNK900401R0000 20 3.50
8 Disconnect plugs Equipped with linking bar Orange PG5-R1 1SNK900402R0000 20 3.50
9 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
9
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
1SNK162070S0201

Technical data valid for copper conductors only.
