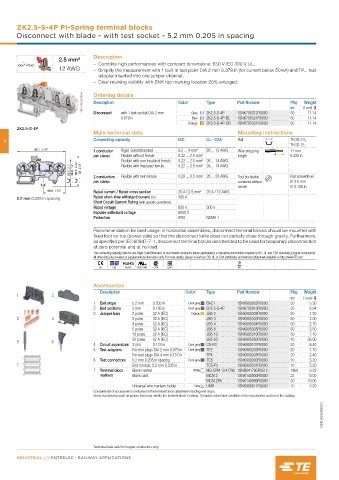

Page 50 - Railways Applications Terminal blocks

ZK2.5-S-4P PI-Spring terminal blocks
Disconnect with blade - with test socket - 5.2 mm 0.205 in spacing

Description
2.5 mm²
– Combine high performances with compact dimensions: 630 V IEC 300 V UL,
12 AWG – Simplify the measurement with 1 built in test point DIA 2 mm 0.079 in (for current below 50mA) and TP... test
adapter inserted into one jumper channel,
– Clear marking visibility with SNK top marking location 20% enlarged.
1SNK162103V0014 Ordering details Color Type Part Number Pkg (1 pce) g
Description
Weight
qty
with 1 test socket DIA 2 mm
Disconnect
1SNK705321R0000
ZK2.5-S-4P-BL
0.079 in Grey ZK2.5-S-4P 1SNK705312R0000 50 11.14
50
11.14
Blue
Orange ZK2.5-S-4P-OR 1SNK705331R0000 50 11.14
ZK2.5-S-4P
Main technical data Mounting instructions
2 Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
86.1 3.39"
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
per clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
53.2 2.1" 45.8 1.8" 59.5 2.34" 52 2.05" Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
2 conductors Flexible with twin ferrule 0.22 ... 0.5 mm² 26 ... 20 AWG Tool (for flexible Flat screwdriver
per clamp conductor without Ø 3.5 mm
ferrule) Ø 0.138 in
38.8 1.53" Rated current / Rated cross section 20 A / 2.5 mm² 20 A / 12 AWG
5.2 mm 0.205 in spacing Rated short-time withstand current (1s) 300 A
Short Circuit Current Rating (with specific conditions)
Rated voltage 630 V 300 V
Impulse withstand voltage 6000 V
Protection IP20 NEMA 1
Recommendation for best usage: in horizontal assemblies, disconnect terminal blocks should be mounted with
fixed foot on top (power side) so that the disconnect knife does not partially close through gravity. Furthermore,
as specified per IEC 60947-7-1, disconnect terminal blocks are intended to be used for temporary disconnection
at zero potential and at no load.
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2 mm 0.158 in Dark grey EK2.5-S-4P 1SNK705913R0000 20 2.94
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
5 6
4 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
5 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
6 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
7 End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
7 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
1SNK162069S0201

Technical data valid for copper conductors only.
INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
