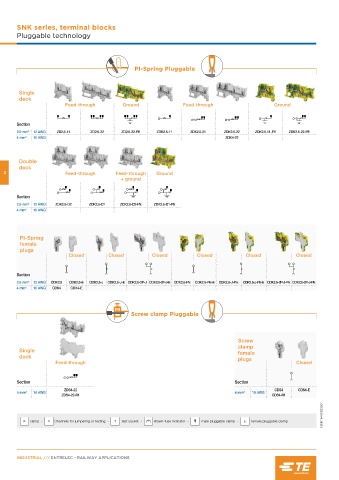

SNK series, terminal blocks
Pluggable technology

PI-Spring Pluggable

Single
deck
Feed-through Ground Feed-through Ground

Section
2.5 mm² 12 AWG ZD2.5-11 ZD2.5-22 ZD2.5-22-PE ZDK2.5-11 ZDK2.5-21 ZDK2.5-22 ZDK2.5-11-PE ZDK2.5-22-PE
4 mm² 10 AWG ZDK4-22

Double
deck
3 Feed-through Feed-through Ground
+ ground

Section
2.5 mm² 12 AWG ZDK2.5-D2 ZDK2.5-D1 ZDK2.5-D2-PE ZDK2.5-D1-PE
4 mm² 10 AWG

PI-Spring
female
plugs
Closed Closed Closed Closed Closed Closed

Section
2.5 mm² 12 AWG CDK2.5 CDK2.5-E CDK2.5-J CDK2.5-J-E CDK2.5-2P-J CDK2.5-2P-J-E CDK2.5-PE CDK2.5-PE-E CDK2.5-J-PE CDK2.5-J-PE-E CDK2.5-2P-J-PE CDK2.5-2P-J-PE
4 mm² 10 AWG CDK4 CDK4-E

Screw clamp Pluggable

Screw
clamp
Single female
deck plugs
Feed-through Closed

Section Section
ZDS4-22 CDS4 CDS4-E
4 mm² 10 AWG 4 mm² 10 AWG
ZDS4-22-R1 CDS4-R1
1SNK164018S0201

clamp - Channels for jumpering or testing - test socket - Blown-fuse indicator - male pluggable clamp - female pluggable clamp
