Page 79 - Railways Applications Terminal blocks
P. 79

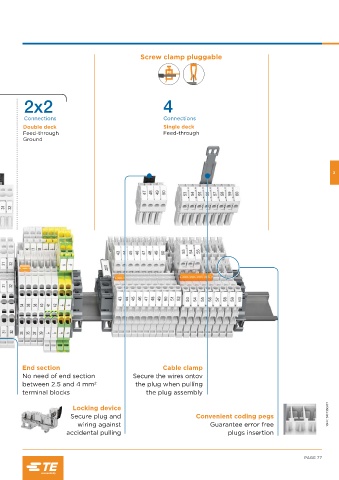

Screw clamp pluggable
2x2 4
Connections Connections
Double deck Single deck
Feed-through Feed-through
Ground
3
End section Cable clamp
Secure the wires ontov u
No need of end section Sec
between 2.5 and 4 mm 2 the plug when pulling e
th
terminal blocks the plug assembly
t
Locking device
Secure plug and Convenient coding pegs 1SNK164013S0201
wiring against Guarantee error free
accidental pulling plugs insertion
PAGE 77
