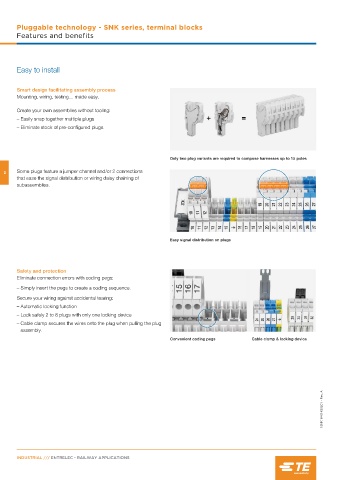

Page 74 - Railways Applications Terminal blocks

Pluggable technology - SNK series, terminal blocks
Features and benefits

Easy to install

Smart design facilitating assembly process
Mounting, wiring, testing… made easy.

Create your own assemblies without tooling:
– Easily snap together multiple plugs
– Eliminate stock of pre-configured plugs.

Only two plug variants are required to compose harnesses up to 15 poles

3 Some plugs feature a jumper channel and/or 2 connections
that ease the signal distribution or wiring daisy chaining of
subassemblies.

Easy signal distribution on plugs

Safety and protection
Eliminate connection errors with coding pegs:

– Simply insert the pegs to create a coding sequence.
Secure your wiring against accidental tearing:
– Automatic locking function
– Lock safely 2 to 8 plugs with only one locking device
– Cable clamp secures the wires onto the plug when pulling the plug
assembly.
Convenient coding pegs Cable clamp & locking device
