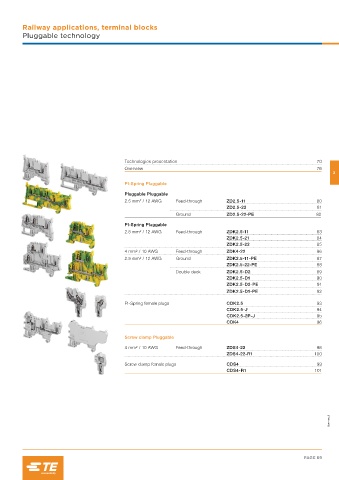

Page 71 - Railways Applications Terminal blocks
P. 71
Railway applications, terminal blocks
Pluggable technology
Technologies presentation 70
Overview 76
3
PI-Spring Pluggable
Pluggable Pluggable
2.5 mm² / 12 AWG Feed-through ZD2.5-11 80
ZD2.5-22 81
Ground ZD2.5-22-PE 82
PI-Spring Pluggable
2.5 mm² / 12 AWG Feed-through ZDK2.5-11 83
ZDK2.5-21 84
ZDK2.5-22 85
4 mm² / 10 AWG Feed-through ZDK4-22 86
2.5 mm² / 12 AWG Ground ZDK2.5-11-PE 87
ZDK2.5-22-PE 88
Double deck ZDK2.5-D2 89
ZDK2.5-D1 90
ZDK2.5-D2-PE 91
ZDK2.5-D1-PE 92
PI-Spring female plugs CDK2.5 93
CDK2.5-J 94
CDK2.5-2P-J 95
CDK4 96
Screw clamp Pluggable
4 mm² / 10 AWG Feed-through ZDS4-22 98
ZDS4-22-R1 100
Screw clamp female plugs CDS4 99
CDS4-R1 101
Summary_3
PAGE 69
