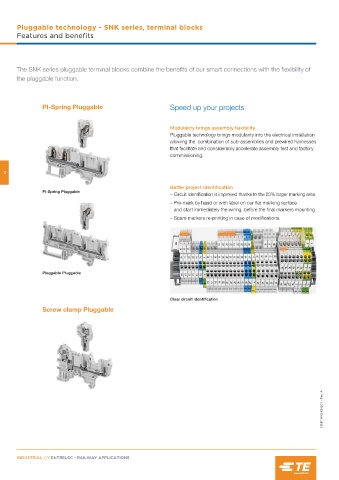

Pluggable technology - SNK series, terminal blocks
       Features and benefits






       The SNK series pluggable terminal blocks combine the benefits of our smart connections with the flexibility of
       the pluggable function.




                PI-Spring Pluggable                          Speed up your projects



                                                             Modularity brings assembly flexibility
                                                             Pluggable technology brings modularity into the electrical installation
                                                             allowing the  combination of sub-assemblies and prewired harnesses
                                                             that facilitate and considerably accelerate assembly test and factory
                                                             commissioning.

  3


                                                             Better project identification
                PI-Spring Pluggable
                                                             –   Circuit identification is improved thanks to the 20% larger marking area
                                                             –  Pre-mark by hand or with label on our flat marking surface
                                                              and start immediately the wiring, before the final markers mounting
                                                             – Spare markers re-printing in case of modifications.











                Pluggable Pluggable



                                                             Clear circuit identification
                Screw clamp Pluggable

















                                                                                                                  1SNK164014S0201 - Rev. A
