Subassemblies
TESTED

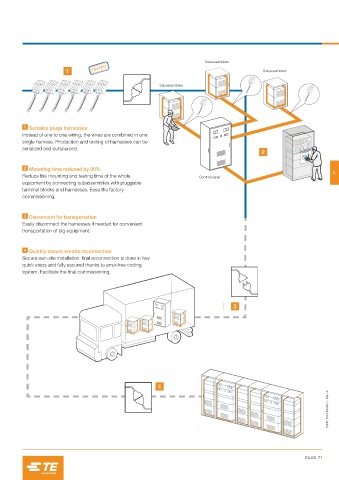

1 Subassemblies

Subassemblies

1 Serialize plugs harnesses
Instead of one to one wiring, the wires are combined in one
single harness. Production and testing of harnesses can be
serialized and outsourced.
2

2 Mounting time reduced by 90%
3
Reduce the mounting and testing time of the whole Control panel
equipment by connecting subassemblies with pluggable
terminal blocks and harnesses. Ease the factory
commissioning.

3 Disconnect for transportation
Easily disconnect the harnesses if needed for convenient
transportation of big equipment.

4 Quickly secure on-site reconnection
Secure oan-site installation: final reconnection is done in few
quick steps and fully secured thanks to error-free coding
system. Facilitate the final commissioning.

3

4
