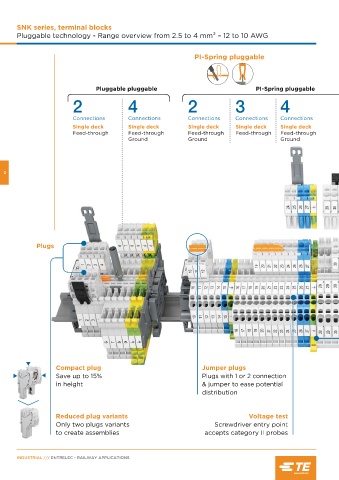

SNK series, terminal blocks
Pluggable technology - Range overview from 2.5 to 4 mm2 – 12 to 10 AWG

PI-Spring pluggable

Pluggable pluggable PI-Spring pluggable

2 4 2 3 4

Connections Connections Connections Connections Connections
Single deck Single deck Single deck Single deck Single deck
Feed-through Feed-through Feed-through Feed-through Feed-through
Ground Ground Ground

3

Plugs

Compact plug Jumper plugs
Save up to 15% Plugs with 1 or 2 connection
in height & jumper to ease potential
distribution

Reduced plug variants Voltage test
Only two plugs variants Screwdriver entry point
to create assemblies accepts category II probes
