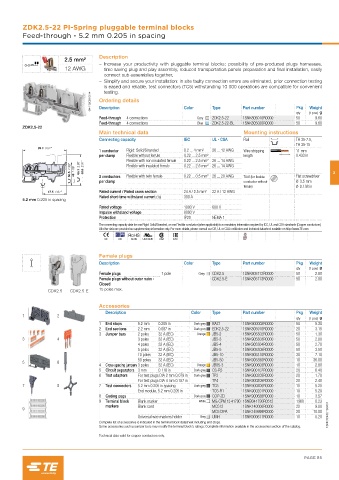

Page 87 - Railways Applications Terminal blocks

ZDK2.5-22 PI-Spring pluggable terminal blocks
Feed-through - 5.2 mm 0.205 in spacing

Description
2.5 mm²
– Increase your productivity with pluggable terminal blocks: possibility of pre-produced plugs harnesses,
12 AWG time saving plug and play assembly, reduced transportation panels preparation and final installation, easily
connect sub-assemblies together,
– Simplify and secure your installation: in site faulty connection errors are eliminated, prior connection testing
is eased and reliable, test connectors (TC5) withstanding 10 000 operations are compatible for convenient
testing.
1SNK162093V0014 Ordering details Color Type Part number Pkg Weight
Description
qty (1 pce) g
Feed-through 4 connections Grey ZDK2.5-22 1SNK805010R0000 50 9.60
Feed-through 4 connections Blue ZDK2.5-22-BL 1SNK805020R0000 50 9.60
ZDK2.5-22
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
89.3 3.52"
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
per clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
50.5 1.99" 43 1.69" 66.1 2.60" 58.6 2.31" Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG Flat screwdriver 3
0.22 ... 0.5 mm² 26 ... 20 AWG
Flexible with twin ferrule
2 conductors
per clamp Tool (for flexible Ø 3.5 mm
conductor without
ferrule) Ø 0.138 in
47.5 1.87" Rated current / Rated cross section 24 A / 2.5 mm² 22 A / 12 AWG
Rated short-time withstand current (1s) 300 A
5.2 mm 0.205 in spacing
Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV

Female plugs
Description Color Type Part number Pkg Weight
qty (1 pce) g
Female plugs 1 pole Grey CDK2.5 1SNK805712R0000 50 2.80
Female plugs without outer nubs - CDK2.5-E 1SNK805713R0000 50 2.80
Closed
15 poles max.
CDK2.5 CDK2.5-E

Accessories
Description Color Type Part number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.2 mm 0.087 in Dark grey EDK2.5-22 1SNK805910R0000 20 3.15
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4 3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
5 6
4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80
5 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 8 7 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
8 Coding pegs Dark grey COP-ZD 1SNK900636R0000 10 3.57
9 Terminal block Blank marker White MG-CPM 13 41790 1SNB041790R0512 1960 0.23
markers Blank card MC512 1SNK140000R0000 22 9.00
9
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20 1SNK164001S0201
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Technical data valid for copper conductors only.

PAGE 85
