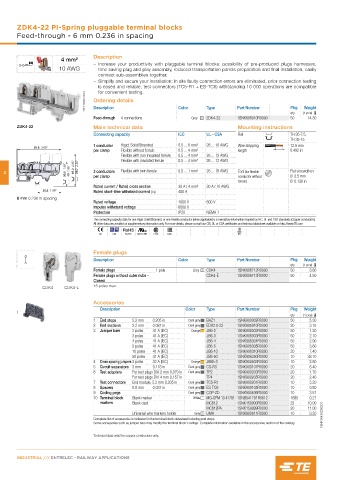

Page 88 - Railways Applications Terminal blocks

ZDK4-22 PI-Spring pluggable terminal blocks
Feed-through - 6 mm 0.236 in spacing

Description
4 mm²
– Increase your productivity with pluggable terminal blocks: possibility of pre-produced plugs harnesses,
10 AWG time saving plug and play assembly, reduced transportation panels preparation and final installation, easily
connect sub-assemblies together,
– Simplify and secure your installation: in site faulty connection errors are eliminated, prior connection testing
is eased and reliable, test connectors (TC5-R1 + ES-TC6) withstanding 10 000 operations are compatible
for convenient testing.
1SNK162094V0014 Ordering details Color Type Part Number Pkg Weight
Description
qty (1 pce) g
Feed-through 4 connections Grey ZDK4-22 1SNK806010R0000 50 14.30
ZDK4-22 Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid: Solid/Stranded 0.5 ... 6 mm² 26 ... 10 AWG Wire stripping 12.5 mm
93.8 3.69"
per clamp Flexible without ferrule 0.5 ... 4 mm² length 0.492 in
Flexible with non insulated ferrule 0.5 ... 4 mm² 26 ... 12 AWG
Flexible with insulated ferrule
0.5 ... 4 mm²
26 ... 12 AWG
50.5 1.99" 67.2 2.65" 59.7 2.35" Flexible with twin ferrule 0.5 ... 1 mm² 26 ... 18 AWG Flat screwdriver
3 43 1.69" 2 conductors Tool (for flexible Ø 3.5 mm
per clamp
conductor without
ferrule) Ø 0.138 in
Rated current / Rated cross section 30 A / 4 mm² 30 A / 10 AWG
50.3 1.98" Rated short-time withstand current (1s) 480 A
6 mm 0.236 in spacing
Rated voltage 1000 V 600 V
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV

Female plugs
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Female plugs 1 pole Grey CDK4 1SNK806712R0000 50 3.80
Female plugs without outer nubs - CDK4-E 1SNK806713R0000 50 4.50
Closed
15 poles max.
CDK4 CDK4-E

Accessories
Description Color Type Part Number Pkg Weight
1
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.2 mm 0.087 in Dark grey EDK2.5-22 1SNK805910R0000 20 3.15
3 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
50 poles 41 A (IEC) JB6-50 1SNK906350R0000 10 38.10
4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80
5 Circuit separators 3 mm 0.118 in Dark grey CS-R3 1SNK900107R0000 20 6.40
6 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
7 Test connectors End module, 5.2 mm 0.205 in Dark grey TC5-R1 1SNK900201R0000 10 5.20
8 Spacers 0.8 mm 0.031 in Dark grey ES-TC6 1SNK900105R0000 10 0.80
9 Coding pegs Dark grey COP-ZD 1SNK900636R0000 10 3.57
10 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20 1SNK164002S0201
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
