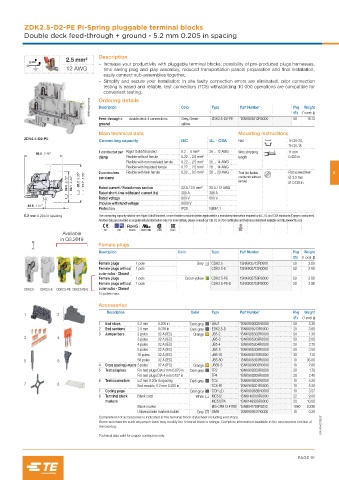

Page 93 - Railways Applications Terminal blocks

ZDK2.5-D2-PE PI-Spring pluggable terminal blocks
Double deck feed-through + ground - 5.2 mm 0.205 in spacing

Description
2.5 mm²
– Increase your productivity with pluggable terminal blocks: possibility of pre-produced plugs harnesses,
12 AWG time saving plug and play assembly, reduced transportation panels preparation and final installation,
easily connect sub-assemblies together,
– Simplify and secure your installation: in site faulty connection errors are eliminated, prior connection
testing is eased and reliable, test connectors (TC5) withstanding 10 000 operations are compatible for
convenient testing.
1SNK164027V0014 Ordering details Color Type Part Number Pkg (1 pce) g
Description
Weight
qty
Feed-through + double deck 4 connections Grey, Green- ZDK2.5-D2-PE 1SNK805212R0000 50 16.13
ground yellow
Main technical data Mounting instructions
ZDK2.5-D2-PE
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
88.5 3.46" 1 conductor per Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG Tool (for flexible Flat screwdriver 3
0.22 ... 0.5 mm²
26 ... 20 AWG
Flexible with twin ferrule
2 conductors
69.6 2.72" 62.1 2.44" 85.2 3.35" 77.7 3.06" per clamp 22 A / 2.5 mm² 20 A / 12 AWG conductor without Ø3.5 mm
ferrule)
Ø0.138 in
Rated current / Rated cross section
Rated short-time withstand current (1s) 300 A 396 A
Rated voltage 800 V 600 V
Impulse withstand voltage 8000 V
40.6 1.57"
Protection IP20 NEMA 1
5.2 mm 0.205 in spacing The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV
Available
in Q3.2019
Female plugs
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Female plugs 1 pole Grey CDK2.5 1SNK805712R0000 50 2.80
Female plugs without 1 pole CDK2.5-E 1SNK805713R0000 50 2.88
outer nubs - Closed
Female plugs 1 pole Green-yellow CDK2.5-PE 1SNK805750R0000 50 2.80
Female plugs without 1 pole CDK2.5-PE-E 1SNK805753R0000 50 2.88
CDK2.5 CDK2.5-E CDK2.5-PE CDK2.5-PE-E outer nubs - Closed
15 poles max.
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 2.0 mm 0.079 in Dark grey EDK2.5-D 1SNK805913R0000 20 3.88
3 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 4
3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
5 6 50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
4 Cross spacing jumpers 3 poles 32 A (IEC) Orange JB85-3 1SNK900603R0000 10 2.80
5 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
6 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
7 8
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
7 Coding pegs Dark grey COP-ZD 1SNK900636R0000 10 3.57
8 Terminal block Blank card White MC512 1SNK140000R0000 22 9.00
markers MC512PA 1SNK149999R0000 20 10.00
Blank marker MG-CPM 13 41790 1SNB041790R0512 1960 0.236
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of
the catalog. 1SNK164030S0201

Technical data valid for copper conductors only.

PAGE 91
