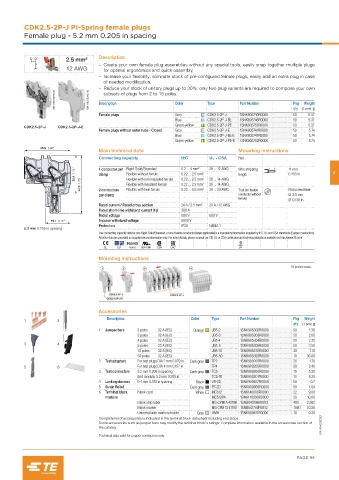

Page 97 - Railways Applications Terminal blocks
P. 97

CDK2.5-2P-J PI-Spring female plugs
          Female plug - 5.2 mm 0.205 in spacing



                                    Description
                        2.5 mm²
                                       – Create your own female plug assemblies without any special tools, easily snap together multiple plugs
                        12 AWG       for optimal ergonomics and quick assembly,
                                       – Increase your flexibility: eliminate stock of pre-configured female plugs, easily add an extra plug in case
                                     of needed modification,
                                       – Reduce your stock of unitary plugs up to 30%: only two plug variants are required to compose your own
                    1SNK164002V0014  1SNK164003V0014  Description  Color  Type       Part Number        Pkg  Weight
                                     subsets of plugs from 2 to 15 poles.


                                    Female plugs               Grey       CDK2.5-2P-J  1SNK805740R0000  qty  (1 pce)  g
                                                                                                             5.37
                                                                                                        50
                                                               Blue       CDK2.5-2P-J-BL  1SNK805746R0000  50  5.37
                                                               Green-yellow  CDK2.5-2P-J-PE  1SNK805751R0000  50  5.37
          CDK2.5-2P-J  CDK2.5-2P-J-E
                                    Female plugs without outer nubs - Closed  Grey  CDK2.5-2P-J-E  1SNK805741R0000  50  5.74
                                                               Blue       CDK2.5-2P-J-BL-E  1SNK805747R0000  50  5.74
                                                               Green-yellow  CDK2.5-2P-J-PE-E  1SNK805752R0000  50  5.74
               35.5  1.38"
                                    Main technical data                              Mounting instructions
                                    Connecting capacity          IEC       UL - CSA  Rail
                           29.8  1.14"  1 conductor per  Rigid: Solid/Stranded  0.2 ... 4 mm²  26 ... 12 AWG  Wire stripping   11 mm  3
                                                                 0.22 ... 2.5 mm²
                                                                                                      0.433 in
                                             Flexible without ferrule
                                                                                     length
                                    clamp
                                                                 0.22 ... 2.5 mm²
                                             Flexible with non insulated ferrule
                             44.9  1.73"  2 conductors   Flexible with insulated ferrule  0.22 ... 2.5 mm²  26 ... 14 AWG  Flat screwdriver
                                                                           26 ... 14 AWG
                                                                           26 ... 20 AWG
                                             Flexible with twin ferrule
                                                                 0.22 ... 0.5 mm²
                                                                                     conductor without
                                    per clamp                                        Tool (for flexible   Ø3.5 mm
                                                                                     ferrule)
                                                                                                      Ø0.138 in
                                    Rated current / Rated cross section  24 A / 2.5 mm²  20 A / 12 AWG
                                    Rated short-time withstand current (1s)  300 A
                                    Rated voltage                500 V     600 V
                   19.1  0.75"      Impulse withstand voltage    6000 V
                                    Protection                   IP20      NEMA 1
          5.2 mm 0.205 in spacing
                                    The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
                                    All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
                                      CE  CB  RoHS  USR CNR  CSA  EAC                BV
                                    Mounting instructions
                                                                                                       15 poles max.


                                    Accessories
                                       Description                  Color  Type      Part Number        Pkg  Weight
          1          2
                                                                                                        qty  (1 pce)  g
                                    1  Jumper bars  2 poles   32 A (IEC)  Orange  JB5-2  1SNK905302R0000  50  1.30
                                                 3 poles   32 A (IEC)      JB5-3     1SNK905303R0000    50   2.00
                                                 4 poles   32 A (IEC)      JB5-4     1SNK905304R0000    50    2.70
          3          4                           5 poles   32 A (IEC)      JB5-5     1SNK905305R0000    50   3.50
                                                 10 poles   32 A (IEC)     JB5-10    1SNK905310R0000    30    7.10
                                                 50 poles   32 A (IEC)     JB5-50    1SNK905350R0000    10   36.00
                                    2  Test adapters  For test plugs DIA 2 mm 0.079 in  Dark grey  TP2  1SNK900203R0000  20  1.70
          5          6                           For test plugs DIA 4 mm 0.157 in  TP4  1SNK900205R0000  20  2.40
                                    3  Test connectors  5.2 mm 0.205 in spacing  Dark grey  TC5  1SNK900200R0000  10  5.20
                                                 End module, 5.2 mm 0.205 in  TC5-R1  1SNK900201R0000   10   5.20
                                    4  Locking devices  9.4 mm 0.370 in spacing  Black  VR-ZD  1SNK900637R0000  50  0.7
                                    5  Strain Relief                Dark grey  PT-ZD  1SNK900660R0000   50    1.04
                                    6  Terminal block   Blank card    White  MC512   1SNK140000R0000    22   9.00
                                      markers                              MC512PA   1SNK149999R0000    20   10.00
                                                 Blank strip label         MG-CPMFA 43196 1SNB043196R0012  400  2.562
                                                 Blank marker              MG-CPM 13 41790 1SNB041790R0512  1960  0.236
                                                 Universal wire markers holder  Grey  UMH  1SNK900611R0000  10  0.20
                                    Complete list of accessories is indicated in the terminal block datasheet including end stops.
                                    Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of   1SNK164032S0201
                                    the catalog.

                                    Technical data valid for copper conductors only.
