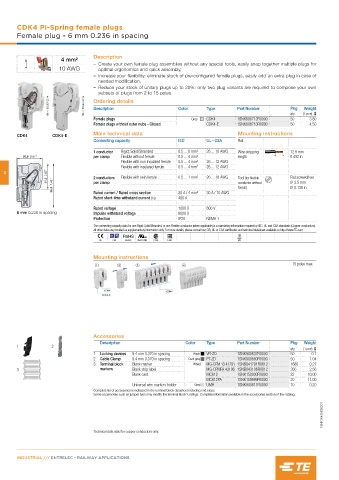

Page 98 - Railways Applications Terminal blocks

CDK4 PI-Spring female plugs
Female plug - 6 mm 0.236 in spacing

Description
4 mm²
– Create your own female plug assemblies without any special tools, easily snap together multiple plugs for
10 AWG optimal ergonomics and quick assembly,
– Increase your flexibility: eliminate stock of pre-configured female plugs, easily add an extra plug in case of
needed modification,
– Reduce your stock of unitary plugs up to 30%: only two plug variants are required to compose your own
subsets of plugs from 2 to 15 poles.
1SNK160293V0014 1SNK160294V0014 Ordering details Color Type Part Number Pkg Weight

Description
50
3.80
Female plugs Grey CDK4 1SNK806712R0000 qty (1 pce) g
Female plugs without outer nubs - Closed CDK4-E 1SNK806713R0000 50 4.50
Main technical data Mounting instructions
CDK4 CDK4-E
Connecting capacity IEC UL - CSA Rail
1 conductor Rigid: Solid/Stranded 0.5 ... 6 mm² 26 ... 10 AWG Wire stripping 12.5 mm
20.6 0.81" per clamp Flexible without ferrule 0.5 ... 4 mm² length 0.492 in
Flexible with non insulated ferrule 0.5 ... 4 mm² 26 ... 12 AWG
Flexible with insulated ferrule 0.5 ... 4 mm² 26 ... 12 AWG
21.2 0.83" 2 conductors Flexible with twin ferrule 0.5 ... 1 mm² 26 ... 18 AWG Tool (for flexible Flat screwdriver
3
36.3 1.43" per clamp conductor without Ø 3.5 mm
ferrule)
Ø 0.138 in
Rated current / Rated cross section 30 A / 4 mm² 30 A / 10 AWG
Rated short-time withstand current (1s) 480 A
Rated voltage 1000 V 600 V
6 mm 0.236 in spacing Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV

Mounting instructions
15 poles max.

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 Locking devices 9.4 mm 0.370 in spacing Black VR-ZD 1SNK900637R0000 50 0.7
2 Cable Clamp 9.4 mm 0.370 in spacing Dark grey PT-ZD 1SNK900660R0000 50 1.04
3 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
3 markers Blank strip label MG-CPMFA 43196 1SNB043196R0012 350 2.56
Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
1SNK164006S0201

Technical data valid for copper conductors only.

INDUSTRIAL /// ENTRELEC - RAILWAY APPLICATIONS
