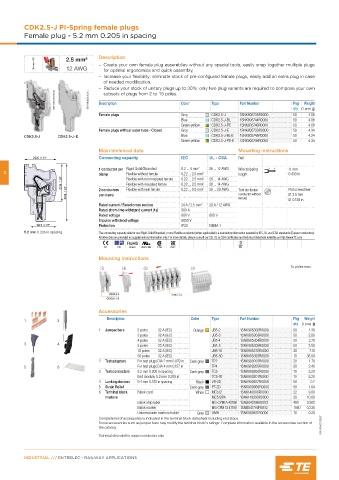

Page 96 - Railways Applications Terminal blocks

CDK2.5-J PI-Spring female plugs
Female plug - 5.2 mm 0.205 in spacing

Description
2.5 mm²
– Create your own female plug assemblies without any special tools, easily snap together multiple plugs
12 AWG for optimal ergonomics and quick assembly,
– Increase your flexibility: eliminate stock of pre-configured female plugs, easily add an extra plug in case
of needed modification,
– Reduce your stock of unitary plugs up to 30%: only two plug variants are required to compose your own
1SNK164000V0014 1SNK164001V0014 Description Color Type Part Number Pkg Weight
subsets of plugs from 2 to 15 poles.

Female plugs Grey CDK2.5-J 1SNK805738R0000 qty (1 pce) g
50
4.08
Blue CDK2.5-J-BL 1SNK805744R0000 50 4.08
Green-yellow CDK2.5-J-PE 1SNK805748R0000 50 4.08
Female plugs without outer nubs - Closed Grey CDK2.5-J-E 1SNK805739R0000 50 4.34
CDK2.5-J CDK2.5-J-E Blue CDK2.5-J-BL-E 1SNK805745R0000 50 4.34
Green-yellow CDK2.5-J-PE-E 1SNK805749R0000 50 4.34
Main technical data Mounting instructions
23.8 0.91" Connecting capacity IEC UL - CSA Rail

1 conductor per Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
3 clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
27.8 1.06" Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
0.22 ... 2.5 mm²
26 ... 14 AWG
Flexible with insulated ferrule
42.9 1.65" 2 conductors Flexible with twin ferrule 0.22 ... 0.5 mm² 26 ... 20 AWG Tool (for flexible Flat screwdriver
conductor without
Ø3.5 mm
per clamp
ferrule)
Ø0.138 in
Rated current / Rated cross section 24 A / 2.5 mm² 20 A / 12 AWG
Rated short-time withstand current (1s) 300 A
Rated voltage 800 V 600 V
Impulse withstand voltage 8000 V
19.1 0.75" Protection IP20 NEMA 1
5.2 mm 0.205 in spacing The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV
Mounting instructions
15 poles max.

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 Jumper bars 2 poles 32 A (IEC) Orange JB5-2 1SNK905302R0000 50 1.30
3 poles 32 A (IEC) JB5-3 1SNK905303R0000 50 2.00
4 poles 32 A (IEC) JB5-4 1SNK905304R0000 50 2.70
3 4 5 poles 32 A (IEC) JB5-5 1SNK905305R0000 50 3.50
10 poles 32 A (IEC) JB5-10 1SNK905310R0000 30 7.10
50 poles 32 A (IEC) JB5-50 1SNK905350R0000 10 36.00
2 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
5 6 For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
3 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
4 Locking devices 9.4 mm 0.370 in spacing Black VR-ZD 1SNK900637R0000 50 0.7
5 Strain Relief Dark grey PT-ZD 1SNK900660R0000 50 1.04
6 Terminal block Blank card White MC512 1SNK140000R0000 22 9.00
markers MC512PA 1SNK149999R0000 20 10.00
Blank strip label MG-CPMFA 43196 1SNB043196R0012 400 2.562
Blank marker MG-CPM 13 41790 1SNB041790R0512 1960 0.236
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of 1SNK164031S0201
the catalog.

Technical data valid for copper conductors only.
