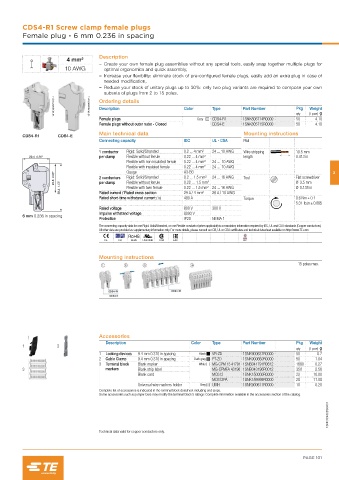

Page 103 - Railways Applications Terminal blocks

CDS4-R1 Screw clamp female plugs
Female plug - 6 mm 0.236 in spacing

Description
4 mm²
– Create your own female plug assemblies without any special tools, easily snap together multiple plugs for
10 AWG optimal ergonomics and quick assembly,
– Increase your flexibility: eliminate stock of pre-configured female plugs, easily add an extra plug in case of
needed modification,
– Reduce your stock of unitary plugs up to 30%: only two plug variants are required to compose your own
subsets of plugs from 2 to 15 poles.
1SNK160297V0014 1SNK160296V0014 Ordering details Color Type Part Number Pkg Weight

Description
Female plugs Grey CDS4-R1 1SNK806714R0000 qty (1 pce) g
4.10
50
Female plugs without outer nubs - Closed CDS4-E 1SNK805715R0000 50 4.10
Main technical data Mounting instructions
CDS4-R1 CDS4-E
Connecting capacity IEC UL - CSA Rail
1 conductor Rigid: Solid/Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
22.4 0.88" per clamp Flexible without ferrule 0.22 ... 4 mm² length 0.413 in
Flexible with non insulated ferrule 0.22 ... 4 mm² 24 … 10 AWG
Flexible with insulated ferrule 0.22 ... 4 mm² 24 … 10 AWG 3
A3-B3
Gauge
24.3 0.96" 2 conductors Rigid: Solid/Stranded 0.2 ... 1.5 mm² 24 ... 16 AWG Tool Flat screwdriver
39.4 1.55" Rated current / Rated cross section 0.22 ... 1.5 mm² 24 ... 16 AWG Ø 0.138 in
Ø 3.5 mm
per clamp
Flexible without ferrule
0.22 … 1.5 mm²
Flexible with twin ferrule
29 A / 4 mm²
28 A / 10 AWG
Rated short-time withstand current (1s) 480 A Torque 0.6 Nm ± 0.1
5.31 lb.in ± 0.885
Rated voltage 800 V 300 V
Impulse withstand voltage 8000 V
6 mm 0.236 in spacing
Protection IP20 NEMA 1
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV
Mounting instructions
15 poles max.

Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 Locking devices 9.4 mm 0.370 in spacing Black VR-ZD 1SNK900637R0000 50 0.7
2 Cable Clamp 9.4 mm 0.370 in spacing Dark grey PT-ZD 1SNK900660R0000 50 1.04
3 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
3 markers Blank strip label MG-CPMFA 43196 1SNB043196R0012 350 2.56
Blank card MC612 1SNK150000R0000 22 10.00
MC612PA 1SNK159999R0000 20 11.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.
1SNK164008S0201

Technical data valid for copper conductors only.
