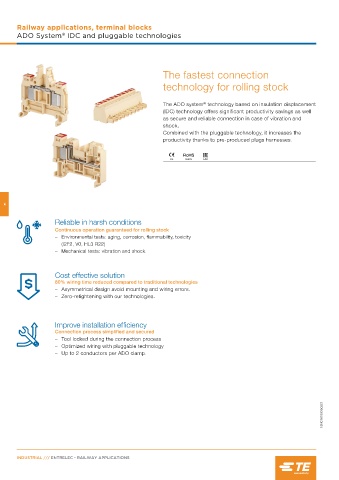

Page 106 - Railways Applications Terminal blocks

Railway applications, terminal blocks
ADO System IDC and pluggable technologies
®

The fastest connection
technology for rolling stock

®
The ADO system technology based on insulation displacement
(IDC) technology offers significant productivity savings as well
as secure and reliable connection in case of vibration and
shock.
Combined with the pluggable technology, it increases the
productivity thanks to pre-produced plugs harnesses.

CE RoHS EAC

4

Reliable in harsh conditions
Continuous operation guaranteed for rolling stock
– Environmental tests: aging, corrosion, flammability, toxicity
(I2F2, V0, HL3 R22)
– Mechanical tests: vibration and shock.

Cost effective solution
80% wiring time reduced compared to traditional technologies
– Asymmetrical design avoid mounting and wiring errors.
– Zero-retightening with our technologies.

Improve installation efficiency
Connection process simplified and secured
– Tool locked during the connection process
– Optimized wiring with pluggable technology
– Up to 2 conductors per ADO clamp.

1SNC167090S0201
