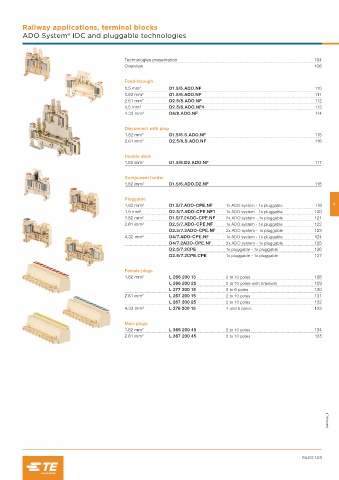

Railway applications, terminal blocks
ADO System® IDC and pluggable technologies

Technologies presentation 104
Overview 106

Feed-through
1.5 mm² D1.5/5.ADO.NF 110
1.82 mm² D1.5/6.ADO.NF 111
2.61 mm² D2.5/8.ADO.NF 112
1.5 mm² D2.5/8.ADO.NF1 113
4.32 mm² D4/8.ADO.NF 114

Disconnect with plug
1.82 mm² D1.5/6.S.ADO.NF 115
2.61 mm² D2.5/8.S.ADO.NF 116

Double deck
1.82 mm² D1.5/6.D2.ADO.NF 117

Component holder
1.82 mm² D1.5/6.ADO.D2.NF 118

Pluggable
1.82 mm² D1.5/7.ADO-CPE.NF 1x ADO system - 1x pluggable 119 4
1.5 mm² D2.5/7.ADO-CPE.NF1 1x ADO system - 1x pluggable 120
1.82 mm² D1.5/7.2ADO-CPE.NF 2x ADO system - 1x pluggable 121
2.61 mm² D2.5/7.ADO-CPE.NF 1x ADO system - 1x pluggable 122
D2.5/7.2ADO-CPE.NF 2x ADO system - 1x pluggable 123
4.32 mm² D4/7.ADO-CPE.NF 1x ADO system - 1x pluggable 124
D4/7.2ADO-CPE.NF 2x ADO system - 1x pluggable 125
D2.5/7.2CPE 1x pluggable - 1x pluggable 126
D2.5/7.2CPE.CPE 1x pluggable - 1x pluggable 127

Female plugs
1.82 mm² L 266 200 15 2 to 10 poles 128
L 266 200 25 2 to 10 poles-with brackets 129
L 277 200 15 2 to 6 poles 130
2.61 mm² L 267 200 15 2 to 10 poles 131
L 267 200 25 2 to 10 poles 132
4.32 mm² L 276 200 15 4 and 5 poles 133

Male plugs
1.82 mm² L 366 200 45 2 to 10 poles 134
2.61 mm² L 367 200 45 2 to 10 poles 135
