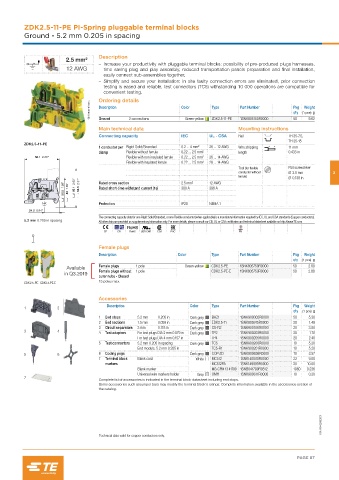

Page 89 - Railways Applications Terminal blocks

ZDK2.5-11-PE PI-Spring pluggable terminal blocks
Ground - 5.2 mm 0.205 in spacing

Description
2.5 mm²
– Increase your productivity with pluggable terminal blocks: possibility of pre-produced plugs harnesses,
12 AWG time saving plug and play assembly, reduced transportation panels preparation and final installation,
easily connect sub-assemblies together,
– Simplify and secure your installation: in site faulty connection errors are eliminated, prior connection
testing is eased and reliable, test connectors (TC5) withstanding 10 000 operations are compatible for
convenient testing.
Ordering details
1SNK164019V0014 Description 2 connections Color Type Part Number Pkg (1 pce) g
Weight
qty
Ground
Green-yellow
9.62
ZDK2.5-11-PE
50
1SNK805150R0000
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
ZDK2.5-11-PE
1 conductor per Rigid: Solid/Stranded 0.2 ... 4 mm² 26 ... 12 AWG Wire stripping 11 mm
clamp Flexible without ferrule 0.22 ... 2.5 mm² length 0.433 in
56.1 2.20" Flexible with non insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
Flexible with insulated ferrule 0.22 ... 2.5 mm² 26 ... 14 AWG
Tool (for flexible Flat screwdriver
conductor without Ø3.5 mm 3
ferrule) Ø0.138 in
50.5 1.98" 43 1.69" 66.1 2.60" 58.6 2.31" Rated cross section 2.5 mm² 12 AWG
Rated short-time withstand current (1s)
300 A
396 A
Protection IP20 NEMA 1
24.2 0.94"
The connecting capacity data for one Rigid: Solid/Stranded, or one Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
5.2 mm 0.205 in spacing All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.TE.com
CE CB RoHS USR CNR CSA EAC BV

Female plugs
Description Color Type Part Number Pkg Weight
qty (1 pce) g
Female plugs 1 pole Green-yellow CDK2.5-PE 1SNK805750R0000 50 2.80
Available
Female plugs without 1 pole CDK2.5-PE-E 1SNK805753R0000 50 2.88
in Q3.2019
outer nubs - Closed
15 poles max.
CDK2.5-PE CDK2.5-PE-E
Accessories
Description Color Type Part Number Pkg Weight
1 2
qty (1 pce) g
1 End stops 5.2 mm 0.205 in Dark grey BAZ1 1SNK900002R0000 50 5.30
2 End sections 1.5 mm 0.059 in Dark grey EDK2.5-11 1SNK805915R0000 20 1.49
3 Circuit separators 3 mm 0.118 in Dark grey CS-R2 1SNK900106R0000 20 3.80
3 4
4 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5 Test connectors 5.2 mm 0.205 in spacing Dark grey TC5 1SNK900200R0000 10 5.20
End module, 5.2 mm 0.205 in TC5-R1 1SNK900201R0000 10 5.20
5 6 6 Coding pegs Dark grey COP-ZD 1SNK900636R0000 10 3.57
7 Terminal block Blank card White MC512 1SNK140000R0000 22 9.00
markers MC512PA 1SNK149999R0000 20 10.00
Blank marker MG-CPM 13 41790 1SNB041790R0512 1960 0.236
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
7
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of
the catalog.

1SNK164024S0201

Technical data valid for copper conductors only.
