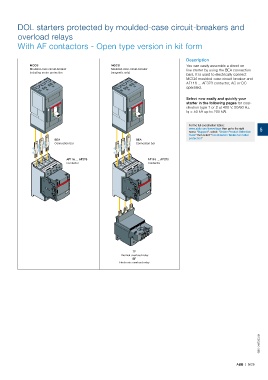

DOL starters protected by moulded-case circuit-breakers and

overload relays
With AF contactors - Open type version in kit form

Description
MCCB MCCB You can easily assemble a direct-on-
Moulded-case circuit-breaker Moulded-case circuit-breaker line starter by using the BEA connection
including motor protection (magnetic only)
bars. It is used to electrically connect
MCCB moulded-case circuit-breaker and
AF116 ... AF370 contactor, AC or DC
operated.

Select now easily and quickly your
starter in the following pages for coor-
dination type 1 or 2 at 400 V, 50/60 Hz,
Iq = 50 kA up to 200 kW.

For the full coordination tables:
www.abb.com/lowvoltage then go to the right 5
menu: "Support", select: "Online Product Selection
Tools" then select "Coordination Tables for motor
protection"
BEA BEA
Connection bar Connection bar

AF116 ... AF370 AF116 ... AF370
Contactor Contactor

TF
Thermal overload relay
EF
Electronic overload relay

1SBC101973S0201

ABB | 5/25
