P. 226

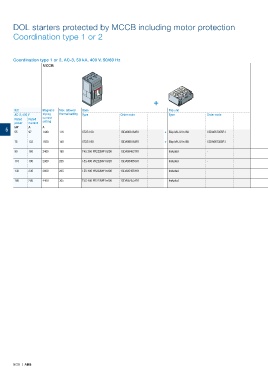

DOL starters protected by MCCB including motor protection
Coordination type 1 or 2
Coordination type 1 or 2, AC-3, 50 kA, 400 V, 50/60 Hz
MCCB Contactors Connection bars
+
IEC Magnetic Max. allowed Base Trip unit Control voltage Type Order code Type Order code
AC-3, 400 V triping thermal setting Type Order code Type Order code Uc min. ... Uc max.
Rated Rated current
power current setting
5 kW A A V 50/60 Hz V DC
55 97 1440 116 XT2S 160 1SDA068164R1 + Ekip M-LIU In160 1SDA067355R1 24...60 20...60 AF116-30-11-11 1SFL427001R1111 BEA140/XT2 1SFN084206R1000
100...250 100...250 AF116-30-11-13 1SFL427001R1311
75 132 1920 140 XT2S 160 1SDA068164R1 + Ekip M-LIU In160 1SDA067355R1 24...60 20...60 AF140-30-11-11 1SFL447001R1111
100...250 100...250 AF140-30-11-13 1SFL447001R1311
90 160 2400 190 T4S 250 PR222MP In200 1SDA054527R1 Included - 24...60 20...60 AF190-30-11-11 1SFL487002R1111 BEA205/T4 1SFN084806R1001
100...250 100...250 AF190-30-11-13 1SFL487002R1311
110 195 2880 205 T5S 400 PR222MP In320 1SDA054553R1 Included - 24...60 20...60 AF205-30-11-11 1SFL527002R1111
100...250 100...250 AF205-30-11-13 1SFL527002R1311
132 230 3600 265 T5S 400 PR222MP In400 1SDA054554R1 Included - 24...60 20...60 AF265-30-11-11 1SFL547002R1111 BEA370/T5 1SFN085406R1000
100...250 100...250 AF265-30-11-13 1SFL547002R1311
160 280 4400 305 T5S 400 PR222MP In400 1SDA054554R1 Included - 24...60 20...60 AF305-30-11-11 1SFL587002R1111
100...250 100...250 AF305-30-11-13 1SFL587002R1311
5/26 | ABB
