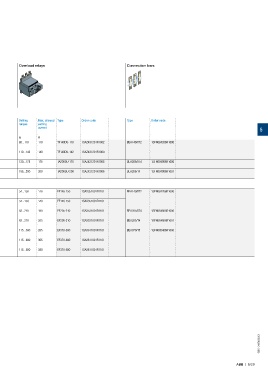

P. 229
Coordination type 1 or 2, AC-3, 50 kA, 400 V, 50/60 Hz
MCCB Contactors Overload relays Connection bars
Thermal overload relays
IEC Magnetic Type Order code Control voltage Type Order code Setting Max. allowed Type Order code Type Order code
AC-3, 400 V triping Uc min. ... Uc max. ranges setting
Rated Rated current current 5
power current
kW A A V 50/60 Hz V DC A A
55 97 1600 XT2S 160 MA 160 1SDA076530R1 24...60 20...60 AF116-30-11-11 1SFL427001R1111 80...110 110 TF140DU-110 1SAZ431201R1002 BEA140/XT2 1SFN084206R1000
100...250 100...250 AF116-30-11-13 1SFL427001R1311
75 132 1920 XT2S 160 MA 160 1SDA076530R1 24...60 20...60 AF140-30-11-11 1SFL447001R1111 110...142 140 TF140DU-142 1SAZ431201R1004
100...250 100...250 AF140-30-11-13 1SFL447001R1311
90 160 2250 XT4S 250 Ekip I In250 1SDA068480R1 24...60 20...60 AF190-30-11-11 1SFL487002R1111 130...175 175 TA200DU-175 1SAZ421201R1005 BEA205/XT4 1SFN084806R1000
100...250 100...250 AF190-30-11-13 1SFL487002R1311
110 195 2720 T4S 320 PR221-I In320 1SDA054126R1 24...60 20...60 AF205-30-11-11 1SFL527002R1111 155...200 200 TA200DU-200 1SAZ421201R1006 BEA205/T4 1SFN084806R1001
100...250 100...250 AF205-30-11-13 1SFL527002R1311
Electronic overload relays
55 97 1600 XT2S 160 MA 160 1SDA076530R1 24...60 20...60 AF116-30-11-11 1SFL427001R1111 54...150 116 EF146-150 1SAX351001R1101 BEA140/XT2 1SFN084206R1000
100...250 100...250 AF116-30-11-13 1SFL427001R1311
75 132 1920 XT2S 160 MA 160 1SDA076530R1 24...60 20...60 AF140-30-11-11 1SFL447001R1111 54...150 140 EF146-150 1SAX351001R1101
100...250 100...250 AF140-30-11-13 1SFL447001R1311
90 160 2250 XT4S 250 Ekip I In250 1SDA068480R1 24...60 20...60 AF190-30-11-11 1SFL487002R1111 63...210 190 EF205-210 1SAX531001R1101 BEA205/XT4 1SFN084806R1000
100...250 100...250 AF190-30-11-13 1SFL487002R1311
110 195 2720 T4S 320 PR221-I In320 1SDA054126R1 24...60 20...60 AF205-30-11-11 1SFL527002R1111 63...210 205 EF205-210 1SAX531001R1101 BEA205/T4 1SFN084806R1001
100...250 100...250 AF205-30-11-13 1SFL527002R1311
132 230 3200 T5S 400 PR221-I In400 1SDA054335R1 24...60 20...60 AF265-30-11-11 1SFL547002R1111 115...380 265 EF370-380 1SAX611001R1101 BEA370/T5 1SFN085406R1000
100...250 100...250 AF265-30-11-13 1SFL547002R1311
160 280 4000 T5S 400 PR221-I In400 1SDA054335R1 24...60 20...60 AF305-30-11-11 1SFL587002R1111 115...380 305 EF370-380 1SAX611001R1101
100...250 100...250 AF305-30-11-13 1SFL587002R1311
200 350 5040 T5S 630 PR221-I In630 1SDA054405R1 24...60 20...60 AF370-30-11-11 1SFL607002R1111 115...380 350 EF370-380 1SAX611001R1101
100...250 100...250 AF370-30-11-13 1SFL607002R1311
1SBC101974S0201
ABB | 5/29
