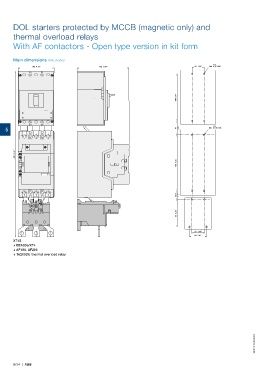

Page 234 - Motor_protection_and_control_Manual_motor_starters_ contactors

DOL starters protected by MCCB (magnetic only) and

thermal overload relays
With AF contactors - Open type version in kit form

Main dimensions mm, inches
4 x
105 4.13" 152 5.98" 35 1.39" M4 8-32 UNC

139 5.47"

8 x
5 41 1.61" M5 10-24 UNC

488 19.21"

165 6.50"

25.5 1.0"

82 3.23"

37 1.46"
50 1.97"
XT4S
+ BEA205/XT4
+ AF190, AF205
+ TA200DU thermal overload relay

1SFC101190C0201
