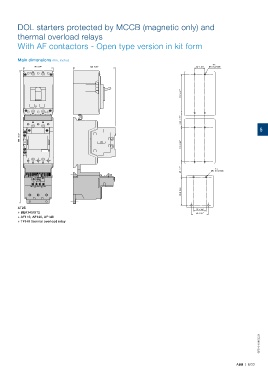

DOL starters protected by MCCB (magnetic only) and

thermal overload relays
With AF contactors - Open type version in kit form

Main dimensions mm, inches
8 x
90 3.54" 126 4.96" 30 1.18" M4 8-32 UNC

112 4.41"

43.2 1.70"

5
398 15.67"
100 3.94"

45 1.77" M5 10-24 UNC
4 x

82.3 3.24"

XT2S
37 1.46"
+ BEA140/XT2 50 1.97"
+ AF116, AF140, AF146
+ TF140 thermal overload relay

1SFC101189C0201

ABB | 5/33
