P. 235

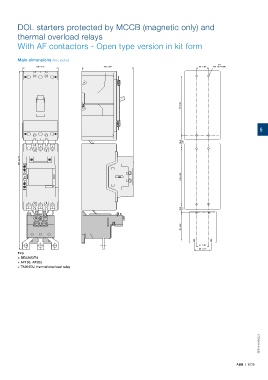

DOL starters protected by MCCB (magnetic only) and

         thermal overload relays
         With AF contactors - Open type version in kit form



         Main dimensions mm, inches
                                                                                                  12 x
                 105  4.13"                    152  5.98"                                35  1.39"  M5  10-24 UNC







                                                                                 176  6.93"





                                                                                                                    5


                                                                                 39.5  1.56"


          527  20.75"



                                                                                 165  6.50"







                                                                                 25.5  1.0"



                                                                                 82  3.23"




                                                                                         37  1.46"
                                                                                         50  1.97"
         T4S
         + BEA205/T4
         + AF190, AF205
         + TA200DU thermal overload relay

















                                                                                                                    1SFC101191C0201






                                                                                                          ABB  |  5/35
