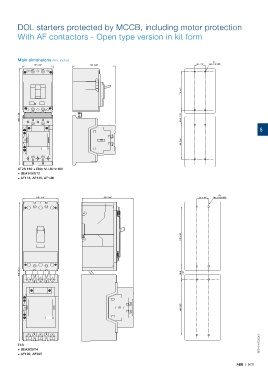

DOL starters protected by MCCB, including motor protection

With AF contactors - Open type version in kit form

Main dimensions mm, inches
8 x
90 3.54" 126 4.96" 30 1.18" M4 8-32 UNC

112 4.41"

289 11.38" 43.2 1.70"

5

100 3.94"

XT2S 160 + Ekip M-LIU In160
+ BEA140/XT2
+ AF116, AF140, AF146

12 x
105 4.13" 152 5.98" 35 1.39" M5 10-24 UNC

176 6.93"

410 16.14" 39.5 1.56"

165 6.50"

1SFC101187C0201

T4S
+ BEA205/T4
+ AF190, AF205
