P. 371

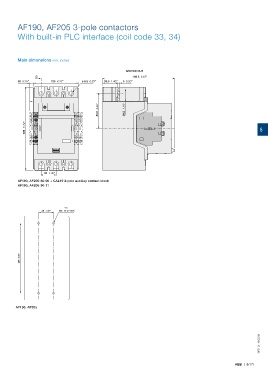

AF190, AF205 3-pole contactors
With built-in PLC interface (coil code 33, 34)
Main dimensions mm, inches
SECTION B-B
B 169.5 6.67"
10 0.39" 105 4.13" ø 8.5 0.33" 35.5 1.40" 5 0.20"
83.5 3.29" 29.5 1.16"
196 7.72" 5
35 1.38"
AF190, AF205-30-00 + CAL19 2-pole auxiliay contact block
AF190, AF205-30-11
4 X
35 1.38" M5 10-24 UNC
165 6.50"
AF190, AF205
1SFC101119C0201
ABB | 5/171
