AF190, AF205 3-pole contactors

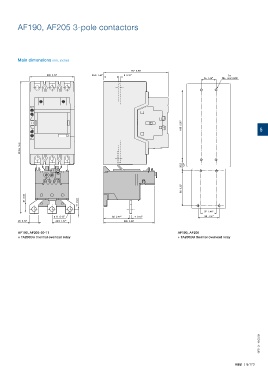

Main dimensions mm, inches
152 5.98"
105 4.13" 35.5 1.40" 5 0.20" 8 x
35 1.39" M5 10-24 UNC
165 6.50" 5
312.5 12.3"
25.5 1.0"
82 3.23"
21 0.83" 11 0.43"
37 1.46"
ø 11 0.43" 62 2.44" 4 0.16" 50 1.97"
20 0.79" 42.5 1.67" 126 4.96"
AF190, AF205-30-11 AF190, AF205
+ TA200DU thermal overload relay + TA200DU thermal overload relay
1SFC101119C0201
