AF265, AF305, AF370 3-pole contactors

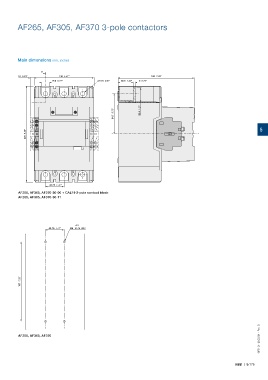

Main dimensions mm, inches
A
10 0.39" 140 5.51" 180 7.09"
19.5 0.77" ø 10.5 0.41" 35.5 1.40" 5 0.20"
94.7 3.73" 33.4 1.31"
5
225 8.86"
43.75 1.72"
AF265, AF305, AF370-30-00 + CAL19 2-pole contact block
AF265, AF305, AF370-30-11
4 X
43.75 1.72" M5 10-24 UNC
187 7.36"
1SFC101120C0201 - Rev. B
AF265, AF305, AF370
