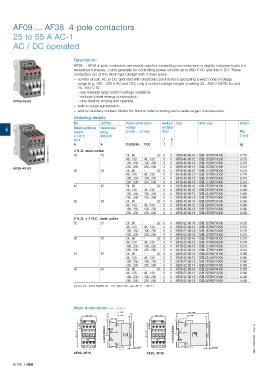

AF09 ... AF38 4-pole contactors

25 to 55 A AC-1
AC / DC operated

Description
AF09 ... AF38 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e.
resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. These
contactors are of the block type design with 4 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
1SBC101095F0014 range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...500 V 50/60 Hz and
20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
AF09-40-00 - very distinct closing and opening.
– built-in surge suppression
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
5 Rated operational General use voltage contacts
current rating Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (1 pce)
AC-1
A A V 50/60 Hz V DC kg
1SBC101097F0014 4 N.O. main poles 24...60 - 48...130 (1) 0 0 0 0 AF09-40-00-41 1SBL137201R4100 0.270
25
25
0.270
48...130
AF09-40-00-12 1SBL137201R1200
100...250
250...500
AF09-40-00-14 1SBL137201R1400
250...500 100...250 0 0 0 0 AF09-40-00-13 1SBL137201R1300 0.270
0.310
AF26-40-00
30 30 24...60 - (1) 0 0 AF16-40-00-41 1SBL177201R4100 0.270
48...130 48...130 0 0 AF16-40-00-12 1SBL177201R1200 0.270
100...250 100...250 0 0 AF16-40-00-13 1SBL177201R1300 0.270
250...500 250...500 0 0 AF16-40-00-14 1SBL177201R1400 0.310
45 45 24...60 - (1) 0 0 AF26-40-00-41 1SBL237201R4100 0.360
48...130 48...130 0 0 AF26-40-00-12 1SBL237201R1200 0.360
100...250 100...250 0 0 AF26-40-00-13 1SBL237201R1300 0.360
250...500 250...500 0 0 AF26-40-00-14 1SBL237201R1400 0.400
55 55 24...60 - (1) 0 0 AF38-40-00-41 1SBL297201R4100 0.360
48...130 48...130 0 0 AF38-40-00-12 1SBL297201R1200 0.360
100...250 100...250 0 0 AF38-40-00-13 1SBL297201R1300 0.360
250...500 250...500 0 0 AF38-40-00-14 1SBL297201R1400 0.400
2 N.O. + 2 N.C. main poles
25 25 24...60 - (1) 0 0 AF09-22-00-41 1SBL137501R4100 0.270
48...130 48...130 0 0 AF09-22-00-12 1SBL137501R1200 0.270
100...250 100...250 0 0 AF09-22-00-13 1SBL137501R1300 0.270
250...500 250...500 0 0 AF09-22-00-14 1SBL137501R1400 0.310
30 30 24...60 - (1) 0 0 AF16-22-00-41 1SBL177501R4100 0.270
48...130 48...130 0 0 AF16-22-00-12 1SBL177501R1200 0.270
100...250 100...250 0 0 AF16-22-00-13 1SBL177501R1300 0.270
250...500 250...500 0 0 AF16-22-00-14 1SBL177501R1400 0.310
45 45 24...60 - (1) 0 0 AF26-22-00-41 1SBL237501R4100 0.360
48...130 48...130 0 0 AF26-22-00-12 1SBL237501R1200 0.360
100...250 100...250 0 0 AF26-22-00-13 1SBL237501R1300 0.360
250...500 250...500 0 0 AF26-22-00-14 1SBL237501R1400 0.400
55 55 24...60 - (1) 0 0 AF38-22-00-41 1SBL297501R4100 0.360
48...130 48...130 0 0 AF38-22-00-12 1SBL297501R1200 0.360
100...250 100...250 0 0 AF38-22-00-13 1SBL297501R1300 0.360
250...500 250...500 0 0 AF38-22-00-14 1SBL297501R1400 0.400
(1) For 24...60 V 50/60 Hz - 20...60 V DC, use AF..Z-..-00-21.

Main dimensions mm, inches
77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20" 1SBC101375S0201 - Rev. B
10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09, AF16 AF26, AF38
