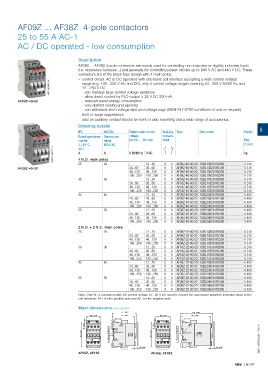

AF09Z ... AF38Z 4-pole contactors

25 to 55 A AC-1
AC / DC operated - low consumption

Description
AF09Z ... AF38Z 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads
(i.e. resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. These
contactors are of the block type design with 4 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
1SBC101095F0014 range (e.g. 100...250 V AC and DC), only 4 control voltage ranges covering 24...250 V 50/60 Hz and
12...250 V DC
- can manage large control voltage variations
- allow direct control by PLC-output ≥ 24 V DC 500 mA
AF09Z-40-00 - reduced panel energy consumption
- very distinct closing and opening
- can withstand short voltage dips and voltage sags (SEMI F47-0706 conditions of use on request).
– built-in surge suppression
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight 5
Rated operational General use voltage contacts
current rating Uc min. … Uc max. fitted Pkg
θ ≤ 40 °C 600 V AC (1 pce)
1SBC101097F0014 A A V 50/60 Hz V DC kg
AC-1
4 N.O. main poles
25 25 - 12...20 0 0 AF09Z-40-00-20 1SBL136201R2000 0.310
AF26Z-40-00 24...60 20...60 0 0 AF09Z-40-00-21 1SBL136201R2100 0.310
48...130 48...130 0 0 AF09Z-40-00-22 1SBL136201R2200 0.310
100...250 100...250 0 0 AF09Z-40-00-23 1SBL136201R2300 0.310
30 30 - 12...20 0 0 AF16Z-40-00-20 1SBL176201R2000 0.310
24...60 20...60 0 0 AF16Z-40-00-21 1SBL176201R2100 0.310
48...130 48...130 0 0 AF16Z-40-00-22 1SBL176201R2200 0.310
100...250 100...250 0 0 AF16Z-40-00-23 1SBL176201R2300 0.310
45 45 - 12...20 0 0 AF26Z-40-00-20 1SBL236201R2000 0.400
24...60 20...60 0 0 AF26Z-40-00-21 1SBL236201R2100 0.400
48...130 48...130 0 0 AF26Z-40-00-22 1SBL236201R2200 0.400
100...250 100...250 0 0 AF26Z-40-00-23 1SBL236201R2300 0.400
55 55 - 12...20 0 0 AF38Z-40-00-20 1SBL296201R2000 0.400
24...60 20...60 0 0 AF38Z-40-00-21 1SBL296201R2100 0.400
48...130 48...130 0 0 AF38Z-40-00-22 1SBL296201R2200 0.400
100...250 100...250 0 0 AF38Z-40-00-23 1SBL296201R2300 0.400
2 N.O. + 2 N.C. main poles
25 25 - 12...20 0 0 AF09Z-22-00-20 1SBL136501R2000 0.310
24...60 20...60 0 0 AF09Z-22-00-21 1SBL136501R2100 0.310
48...130 48...130 0 0 AF09Z-22-00-22 1SBL136501R2200 0.310
100...250 100...250 0 0 AF09Z-22-00-23 1SBL136501R2300 0.310
30 30 - 12...20 0 0 AF16Z-22-00-20 1SBL176501R2000 0.310
24...60 20...60 0 0 AF16Z-22-00-21 1SBL176501R2100 0.310
48...130 48...130 0 0 AF16Z-22-00-22 1SBL176501R2200 0.310
100...250 100...250 0 0 AF16Z-22-00-23 1SBL176501R2300 0.310
45 45 - 12...20 0 0 AF26Z-22-00-20 1SBL236501R2000 0.400
24...60 20...60 0 0 AF26Z-22-00-21 1SBL236501R2100 0.400
48...130 48...130 0 0 AF26Z-22-00-22 1SBL236501R2200 0.400
100...250 100...250 0 0 AF26Z-22-00-23 1SBL236501R2300 0.400
55 55 - 12...20 0 0 AF38Z-22-00-20 1SBL296501R2000 0.400
24...60 20...60 0 0 AF38Z-22-00-21 1SBL296501R2100 0.400
48...130 48...130 0 0 AF38Z-22-00-22 1SBL296501R2200 0.400
100...250 100...250 0 0 AF38Z-22-00-23 1SBL296501R2300 0.400
Note: Only AF..Z contactors with DC control voltage 12...20 V DC need to respect the connection polarities indicated close to the
coil terminals: A1+ for the positive pole and A2- for the negative pole.

Main dimensions mm, inches
77 3.03" 101 3.98"
35 1.38"
45 1.77" 71 2.80" 45 1.77" 2 x 95 3.74" 35 1.38" 2 x
ø 4.2 0.17"
5.5 0.22" M4 8-32 UNC 5.5 0.22" ø 4.2 0.17" M4 8-32 UNC
6 0.24" 6 0.24"
80 3.15" 35 mm EN/IEC 60715 5.5 0.22" 80 3.15" 60 2.36" 70 2.76" 35 mm EN/IEC 60715 5.5 0.22" 60 2.36" 70 2.76"
5 0.20" 5 0.20" 1SBC101376S0201 - Rev. A
10 0.39" 10 0.39"
5 0.20" 5 0.20"
AF09Z, AF16Z AF26Z, AF38Z
