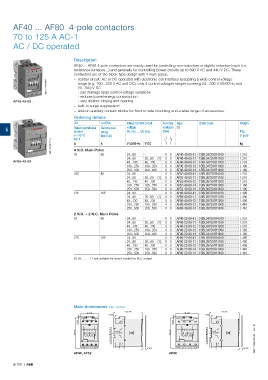

AF40 ... AF80 4-pole contactors

70 to 125 A AC-1
AC / DC operated

Description
AF40 ... AF80 4-pole contactors are mainly used for controlling non-inductive or slightly inductive loads (i.e.
resistance furnaces...) and generally for controlling power circuits up to 690 V AC and 440 V DC. These
contactors are of the block type design with 4 main poles.
– control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage
1SBC101045V0014 range (e.g. 100...250 V AC and DC), only 4 control voltages ranges covering 24...500 V 50/60 Hz and
20...500 V DC
- can manage large control voltage variations
- reduced panel energy consumption
AF40-40-00 - very distinct closing and opening.
– built-in surge suppression
– add-on auxiliary contact blocks for front or side mounting and a wide range of accessories.
Ordering details
IEC UL/CSA Rated control circuit Auxiliary Type Order code Weight
5 Rated operational General use voltage contacts (1) Pkg
Uc min. … Uc max.
fitted
current
rating
θ ≤ 40 °C 600 V AC (1 pce)
AC-1
1SBC101048V0014 A 4 N.O. Main Poles V 50/60 Hz V DC kg
A
70
60
24...60
AF40-40-00-11 1SBL347201R1100
1.210
24...60 - 20...60 (1) 0 0 AF40-40-00-41 1SBL347201R4100 1.210
0 0
AF80-40-00 48...130 48...130 0 0 AF40-40-00-12 1SBL347201R1200 1.210
100...250 100...250 0 0 AF40-40-00-13 1SBL347201R1300 1.160
250...500 250...500 0 0 AF40-40-00-14 1SBL347201R1400 1.160
100 80 24...60 - 0 0 AF52-40-00-41 1SBL367201R4100 1.210
24...60 20...60 (1) 0 0 AF52-40-00-11 1SBL367201R1100 1.210
48...130 48...130 0 0 AF52-40-00-12 1SBL367201R1200 1.210
100...250 100...250 0 0 AF52-40-00-13 1SBL367201R1300 1.160
250...500 250...500 0 0 AF52-40-00-14 1SBL367201R1400 1.160
125 105 24...60 - 0 0 AF80-40-00-41 1SBL397201R4100 1.490
24...60 20...60 (1) 0 0 AF80-40-00-11 1SBL397201R1100 1.490
48...130 48...130 0 0 AF80-40-00-12 1SBL397201R1200 1.490
100...250 100...250 0 0 AF80-40-00-13 1SBL397201R1300 1.440
250...500 250...500 0 0 AF80-40-00-14 1SBL397201R1400 1.440
2 N.O. + 2 N.C. Main Poles
70 60 24...60 - 0 0 AF40-22-00-41 1SBL347501R4100 1.210
24...60 20...60 (1) 0 0 AF40-22-00-11 1SBL347501R1100 1.210
48...130 48...130 0 0 AF40-22-00-12 1SBL347501R1200 1.210
100...250 100...250 0 0 AF40-22-00-13 1SBL347501R1300 1.160
250...500 250...500 0 0 AF40-22-00-14 1SBL347501R1400 1.160
125 105 24...60 - 0 0 AF80-22-00-41 1SBL397501R4100 1.490
24...60 20...60 (1) 0 0 AF80-22-00-11 1SBL397501R1100 1.490
48...130 48...130 0 0 AF80-22-00-12 1SBL397501R1200 1.490
100...250 100...250 0 0 AF80-22-00-13 1SBL397501R1300 1.440
250...500 250...500 0 0 AF80-22-00-14 1SBL397501R1400 1.440
(1) AF..-..-..-11 not suitable for direct control by PLC-output.

Main dimensions mm, inches
113.5 4.47" 116 4.57"
70 2.76" 90 3.54"
7 0.28" 7 0.28"
6 0.24" 6 0.24"
119.5 4.70" 35 x 15 mm EN/IEC 60715 5.5 0.22" 0.22" 119.5 4.70" 35 x 15 mm EN/IEC 60715 5.5 0.22" 1SBC101987S0201 - Rev. B
5.5

10 0.39" 10 0.39"
AF40, AF52 AF80
