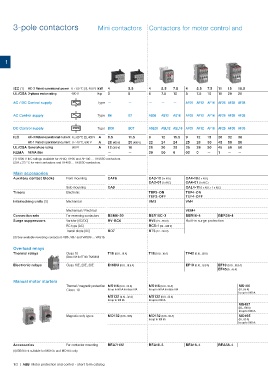

3-pole contactors                     Mini contactors       Contactors for motor control and








    1






       IEC (1)  AC-3 Rated operational power θ ≤ 60 °C (2), 400 V kW  4  5.5  4  5.5  7.5  4  5.5  7.5  11  15  18.5             18.5 22  30  37  45  55  75  75   90   110  132  160  200  200  250  315  400  —   475   560  —    —
       UL/CSA 3-phase motor rating  480 V   hp   3        5        5     7.5  10    5   7.5  10   15  20   25                    30  40  50  60  60  75  100  100  125  150  200  250  300  350  400  500  600  —   800   900  —    —

       AC / DC Control supply               Type —        —        —     —    —     AF09  AF12  AF16  AF26 AF30 AF38             AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650

       AC Control supply                    Type B6       B7       AS09  AS12  AS16  AF09  AF12  AF16  AF26 AF30 AF38            AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650


       DC Control supply                    Type BC6      BC7      ASL09  ASL12 ASL16  AF09  AF12  AF16  AF26 AF30 AF38          AF40 AF52 AF65 AF80 AF96 AF116 AF140 AF146 AF190 AF205 AF265 AF305 AF370 AF400 AF460 AF580 AF750 AF1250 AF1350 AF1650 AF2050 AF2650
       IEC   AC-3 Rated operational current θ ≤ 60 °C (2), 400 V  A  8.5  11.5  9  12  15.5  9  12  18  26  32  38               40  53  65  80  96  116  140  146  190  205  265  305  370  400  460  580  750  —  860   1060  —   —
             AC-1 Rated operational current θ ≤ 40 °C, 690 V   A  20 (400 V)  20 (400 V)  22  24  24  25  28  30  45  50  50     70  100 105  125 130  160  200  225  275  350  400  500  600  600  700  800  1050 1260  1350  1650  2050  2650
       UL/CSA General use rating  600 V      A   12 (300 V)  16    20    20   20    25  28   30   45  50   50                    60  80  90  105 115  160  200  200  250  300  350  400  520  550  650  750  900  1210  1350  1650  2100  2700
       NEMA  NEMA Size                           —        —        00    00   0     00  0    —    1   —    —                     2  —   —   3   —   —    4    —    —    —    5    —   —    —    6    —    7    —    —     8    —    —
       (1) 1000 V IEC ratings available for AF80, AF96 and AF146 … AF2650 contactors.
       (2) θ ≤ 55 °C for mini contactors and AF400 ... AF2650 contactors.
       Main accessories
       Auxiliary contact blocks  Front mounting  CAF6              CA3-10 (1 x N.O.)   CA4-10 (1 x N.O.)
                                                                   CA3-01 (1 x N.C.)  CA4-01 (1 x N.C.)
                               Side mounting     CA6                                CAL4-11 (1 x N.O. + 1 x N.C.)                                   CAL19-11 (1 x N.O. + 1 x N.C.)         CAL18-11 (1 x N.O. + 1 x N.C.)
       Timers                  Electronic                          TEF3-ON          TEF4-ON
                                                                   TEF3-OFF         TEF4-OFF
       Interlocking units (3)  Mechanical                          VM3              VM4                                          VM96-4             VM19 (for same size contactors)        VM750H                   VM1650H
                                                                                                                                                                                           VM750V
                               Mechanical / Electrical                              VEM4
       Connection sets         For reversing contactors  BSM6-30   BER16C-3         BER16-4       BER38-4                        BER65-4    BER96-4 BER140-4       BER205-4  BER370-4      BEM460-30 BEM750-30
       Surge suppressors       Varistor (AC/DC)  RV-BC6            RV5 (24…440 V)   Built-in surge protection
                               RC type (AC)                        RC5-1 (24…440 V)
                               Transil diode (DC)  RD7             RT5 (12…264 V)
       (3) See available reversing contactors VB6, VB7 and VAS09 ... VAS16.

       Overload relays
       Thermal relays          Class 10          T16 (0.10…16 A)   T16 (0.10…16 A)  TF42 (0.10…38 A)                             TF65 (22...67 A)  TF96   TF140DU  TA200DU
                               (Class 10A for TF140, TA200DU)                                                                               (40...96 A)  (66...142 A)  (66...200 A)
                                                                                                                                                    θ ≤ 55 °C      θ ≤ 55 °C
       Electronic relays       Class 10E, 20E, 30E  E16DU (0.10…18.9 A)             EF19 (0.10…18.9 A)  EF19 (0.10…18.9 A)       EF65 (20...70 A)  EF96   EF146 (54...150 A)  EF205   EF370 (115...380 A)  EF460  EF750
                                                                                                  EF45 (9…45 A)                             (20...100 A)           (63...210 A)            (150…500 A)  (250…800 A)

       Manual motor starters                                                                                                                        Short-circuit protection devices
                               Thermal / magnetic protection MS116 (0.10…32 A)   MS116 (0.10...32 A)       MS165                            MS5100  MCCB and switch-fuses
                               Class 10          Ics up to 50 kA for class 10A  lcs up to 50 kA for class 10A  (10...65 A)                  (40…100 A)
                                                                                                           lcs up to 100 kA                 Ics up to 50 kA
                                                 MS132 (0.10…32 A)   MS132 (0.10...32 A)                                             MS495 (45…100 A)
                                                 Ics up to 100 kA  lcs up to 100 kA                                                  Ics up to 50 kA
                                                                                                           MS497
                                                                                                           (22…100 A)
                                                                                                           Ics up to 100 kA
                               Magnetic only types  MO132 (0.16...32A)  MO132 (0.16...32 A)                MO165                            MO5100
                                                                   Ics up to 100 kA                        (16...65 A)                      (70…100 A)
                                                                                                           lcs up to 100 kA                 Ics up to 36 kA
                                                                                                                                 MO496 (32…100 A)
                                                                                                                                 Ics up to 100 kA
                                                                                                                                            MO495
                                                                                                                                            (63…100 A)
                                                                                                                                            Ics up to 50 kA
       Accessories             For contactor mounting  BEA7/132    BEA16-3          BEA16-4       BEA38-4                        BEA65-4 (4)
       (4) BEA65-4 suitable for MS165 and MO165 only.
