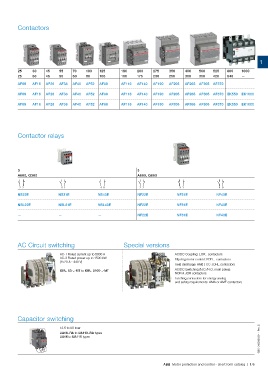

Mini contactors  Contactors







                                                                                                                    1

 IEC  AC-1 Rated operational current  θ ≤ 40 °C, 690 V  A  16  20  25  30  45  55  70  100  125  160  200  275  350  400  500  525  800  1000
 UL/CSA  General use rating  600 V  A  12 (300 V)  16  25  30  45  55  60  80  105  160  175  230  250  300  350  420  540  —

 AC / DC Control supply  Type  —  —  AF09  AF16  AF26  AF38  AF40  AF52  AF80  AF116  AF140  AF190  AF205  AF265  AF305  AF370  —  —

 AC Control supply  Type  B6  B7  AF09  AF16  AF26  AF38  AF40  AF52  AF80  AF116  AF140  AF190  AF205  AF265  AF305  AF370  EK550  EK1000
 DC Control supply  Type  BC6  BC7  AF09  AF16  AF26  AF38  AF40  AF52  AF80  AF116  AF140  AF190  AF205  AF265  AF305  AF370  EK550  EK1000






 Mini contactor relays  Contactor relays









 IEC  AC-15 Rated operational current  400 V  A  3  3         3
 UL/CSA  Pilot duty  A600  A600, Q300                         A600, Q600

 2  2  3  1  4  0  2  2     3  1              4  0             2  2              3  1             4  0
 AC Control supply  Type  K6-22Z  K6-31Z  K6-40E  NS22E  NS31E  NS40E  NF22E    NF31E            NF40E

 DC Control supply  Type  KC6-22Z  KC6-31Z  KC6-40E  NSL22E  NSL31E  NSL40E  NF22E  NF31E        NF40E

 AC / DC Control supply  Type  —  —  —  —  —  —               NF22E             NF31E            NF40E






 DC Circuit switching  AC Circuit switching             Special versions

 DC-1 Rated current up to 5000 A   AC-1 Rated current up to 5000 A             AC/DC Coupling: LOR.. contactors
 DC-3/DC-5 Rated current up to 2000 A   AC-3 Rated power up to 1500 kW         Slip ring motor control: FOR .. contactors
 1500 V with poles in series  (1520 A - 440 V)                                 Field discharge: AM(F)-CC-JORE contactors
 IOR.. 63-..-CC to IOR.. 5100-..-CC  IOR.. 63-..-MT to IOR.. 5100-..-MT        AC/DC Switching (N.C./N.O. main poles):
                                                                               NOR & JOR contactors
                                                                               Latching contactors for energy saving
                                                                               and safety requirements: AMA or AME contactors







 DC Circuit switching  Capacitor switching

                                                                                                                    1SBC101638S0201 - Rev. D
 100 A, 440 V, DC-1  275 to 2050 A, 1000 V, DC-1  12.5 to 80 kvar
 GA75, GAE75 types  GAF185 to GAF2050 types  UA16..RA to UA110..RA types
                            UA16 to UA110 types





                                                                          ABB  Motor protection and control - short form catalog  |  1/5
