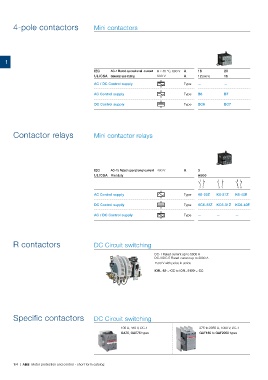

4-pole contactors                   Mini contactors                                                                      Contactors








    1

                                           IEC    AC-1 Rated operational  current  θ ≤ 40 °C, 690 V  A  16  20                  25     30   45    55    70    100   125       160    200    275    350    400   500    525   800   1000
                                           UL/CSA  General use rating  600 V       A     12 (300 V)  16                         25     30   45    55    60    80    105       160    175    230    250    300   350    420   540   —

                                           AC / DC Control supply                  Type  —           —                          AF09   AF16  AF26  AF38  AF40  AF52  AF80     AF116  AF140  AF190  AF205  AF265  AF305  AF370  —   —

                                           AC Control supply                       Type  B6          B7                         AF09   AF16  AF26  AF38  AF40  AF52  AF80     AF116  AF140  AF190  AF205  AF265  AF305  AF370  EK550  EK1000
                                           DC Control supply                       Type  BC6         BC7                        AF09   AF16  AF26  AF38  AF40  AF52  AF80     AF116  AF140  AF190  AF205  AF265  AF305  AF370  EK550  EK1000






       Contactor relays                    Mini contactor relays                                                                Contactor relays









                                           IEC    AC-15 Rated operational current  400 V  A  3                                  3                                                    3
                                           UL/CSA  Pilot duty                            A600                                   A600, Q300                                           A600, Q600

                                                                                          2  2    3  1    4  0                   2  2              3  1              4  0             2  2              3  1             4  0
                                           AC Control supply                       Type  K6-22Z  K6-31Z   K6-40E                NS22E             NS31E             NS40E            NF22E             NF31E            NF40E

                                           DC Control supply                       Type  KC6-22Z  KC6-31Z  KC6-40E              NSL22E            NSL31E            NSL40E           NF22E             NF31E            NF40E

                                           AC / DC Control supply                  Type  —       —        —                     —                 —                 —                NF22E             NF31E            NF40E





       R contactors                        DC Circuit switching                                                                 AC Circuit switching                           Special versions


                                                                      DC-1 Rated current up to 5000 A                                              AC-1 Rated current up to 5000 A                    AC/DC Coupling: LOR.. contactors
                                                                      DC-3/DC-5 Rated current up to 2000 A                                         AC-3 Rated power up to 1500 kW                     Slip ring motor control: FOR .. contactors
                                                                      1500 V with poles in series                                                  (1520 A - 440 V)                                   Field discharge: AM(F)-CC-JORE contactors
                                                                      IOR.. 63-..-CC to IOR.. 5100-..-CC                                           IOR.. 63-..-MT to IOR.. 5100-..-MT                 AC/DC Switching (N.C./N.O. main poles):
                                                                                                                                                                                                      NOR & JOR contactors
                                                                                                                                                                                                      Latching contactors for energy saving
                                                                                                                                                                                                      and safety requirements: AMA or AME contactors







       Specific contactors                 DC Circuit switching                                                                 Capacitor switching

                                                       100 A, 440 V, DC-1                 275 to 2050 A, 1000 V, DC-1                              12.5 to 80 kvar
                                                       GA75, GAE75 types                  GAF185 to GAF2050 types                                  UA16..RA to UA110..RA types
                                                                                                                                                   UA16 to UA110 types
