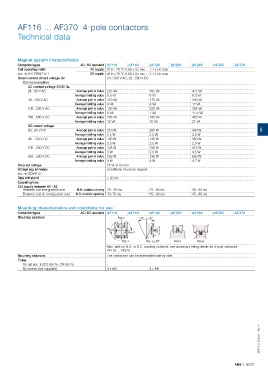

AF116 ... AF370 4-pole contactors

Technical data

Magnet system characteristics
Contactor types AC / DC operated AF116 AF140 AF190 AF205 AF265 AF305 AF370
Coil operating limits AC supply At θ ≤ 70 °C 0.85 x Uc min ... 1.1 x Uc max
acc. to IEC 60947-4-1 DC supply At θ ≤ 70 °C 0.80 x Uc min ... 1.1 x Uc max
Rated control circuit voltage Uc 24...500 V AC, 20...500 V DC
Coil consumption
AC control voltage 50/60 Hz
24...60 V AC Average pull-in value 225 VA 165 VA 475 VA
Average holding value 5.5 VA 6 VA 8.5 VA
48...130 V AC Average pull-in value 170 VA 175 VA 340 VA
Average holding value 4 VA 4 VA 17 VA
100...250 V AC Average pull-in value 130 VA 220 VA 385 VA
Average holding value 6 VA 7 VA 17.5 VA
250...500 V AC Average pull-in value 205 VA 185 VA 420 VA
Average holding value 16 VA 16 VA 21 VA
DC control voltage
20...60 V DC Average pull-in value 210 W 205 W 400 W 5
Average holding value 2.5 W 2.5 W 3.5 W
48...130 V DC Average pull-in value 130 W 130 W 360 W
Average holding value 2.5 W 2.5 W 2.5 W
100...250 V DC Average pull-in value 135 W 190 W 410 W
Average holding value 3 W 2.5 W 4.5 W
250...500 V DC Average pull-in value 205 W 190 W 600 W
Average holding value 4 W 4 W 4.7 W
Drop-out voltage 55 % of Uc min
Voltage sag immunity Conditions of use on request
acc. to SEMI F47
Dips withstand ≥ 20 ms
Operating time
Coil supply between A1 - A2
Between coil energization and: N.O. contact closing 20...55 ms 25...60 ms 30...60 ms
Between coil de-energization and: N.O. contact opening 40..70 ms 45...80 ms 45...80 ms

Mounting characteristics and conditions for use
Contactor types AC / DC operated AF116 AF140 AF190 AF205 AF265 AF305 AF370
Mounting positions Pos. 2 +30° -30°

Pos. 4
Pos. 3
Pos. 1 Pos. 1 ± 30° Pos. 5 Pos. 6
Max. add-on N.O. or N.C. auxiliary contacts: see accessory fitting details for 4-pole contactor
AF116 ... AF370
Mounting distances The contactors can be assembled side by side
Fixing
On rail acc. to IEC 60715, EN 60715 -
By screws (not supplied) 4 x M4 4 x M5
