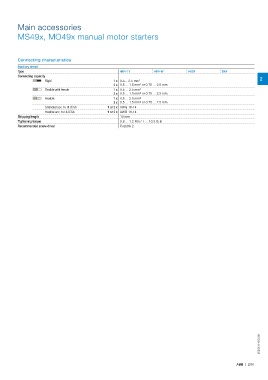

Main accessories
MS49x, MO49x manual motor starters
Connecting characteristics
Auxiliary circuit
Type HK4-11 HK4-W HKS4 SK4
Connecting capacity
Rigid 1 x 0.5... 2.5 mm² 2
2 x 0.5 ... 1.5 mm² or 0.75 ... 2.5 mm
Flexible with ferrule 1 x 0.5 ... 2.5 mm²
2 x 0.5 ... 1.5 mm² or 0.75 ... 2.5 mm
Flexible 1 x 0.5 ... 2.5 mm²
2 x 0.5 ... 1.5 mm² or 0.75 ... 2.5 mm
Stranded acc. to UL/CSA 1 or 2 x AWG 18-14
Flexible acc. to UL/CSA 1 or 2 x AWG 18-14
Stripping length 10 mm
Tightening torque 0.8 ... 1.2 Nm / 7 ... 10.3 Ib.in
Recommended screw driver Pozidriv 2
2CDC131115C0201
ABB | 2/51
