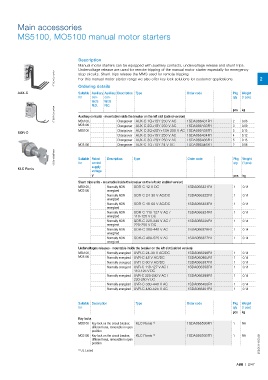

Page 55 - Motor_protection_and_control_Manual_motor_starters_ contactors

Main accessories

MS5100, MO5100 manual motor starters

Description
Manual motor starters can be equipped with auxiliary contacts, undervoltage release and shunt trips.
Undervoltage release are used for remote tripping of the manual motor starter especially for emergency
XT AUX-Con cavi-01 stop circuits. Shunt trips release the MMS used for remote tripping. 2
For this manual motor starter range we also offer key lock solutions for customer applications.

AUX-C Ordering details Order code Pkg Weight
Suitable Auxiliary Auxiliary Description Type
for con- con- qty (1 pce)
tacts tacts
N.O. N.C.
XT SOR-Con cavi-01 Auxiliary contacts - mountable inside the breaker on the left slot (cabled version) pcs kg

MS5100,
MO5100 Changeover AUX-C 1Q+1SY 250 V AC 1SDA066431R1 2 3 0.06
1SDA066433R1
Changeover
AUX-C 2Q+1SY 250 V AC
0.09
MS5100 Changeover AUX-C 2Q+2SY+1SA 250 V AC 1SDA066438R1 5 0.15
SOR-C
Changeover AUX-C 3Q+1SY 250 V AC 1SDA066434R1 4 0.12
Changeover AUX-C 3Q+2SY 250 V AC 1SDA066436R1 5 0.15
MO5100 Changeover AUX-C 1Q+1SY 24 V DC 1SDA066446R1 2 0.06
1SDC210C86F0001 Suitable Rated Description Type Order code Pkg Weight
(1 pce)
qty
control
for
KLC Ronis supply
voltage
V pcs kg
Shunt trips units - mountable inside the breaker on the left slot (cabled version)
MS5100, Normally NON SOR-C 12 V DC 1SDA066321R1 1 0.14
MO5100 energized
Normally NON SOR-C 24-30 V AC/DC 1SDA066322R1 1 0.14
energized
Normally NON SOR-C 48-60 V AC/DC 1SDA066323R1 1 0.14
energized
Normally NON SOR-C 110-127 V AC / 1SDA066324R1 1 0.14
energized 110-125 V DC
Normally NON SOR-C 220-240 V AC / 1SDA066325R1 1 0.14
energized 220-250 V DC
Normally NON SOR-C 380-440 V AC 1SDA066326R1 1 0.14
energized
Normally NON SOR-C 480-525 V AC 1SDA066327R1 1 0.14
energized
Undervoltages releases - mountable inside the breaker on the left slot (cabled version)
MS5100, Normally energized UVR-C 24-30 V AC/DC 1SDA066396R1 1 0.14
MO5100 Normally energized UVR-C 48 V AC/DC 1SDA060965R1 1 0.14
Normally energized UVR-C 60 V AC/DC 1SDA066397R1 1 0.14
Normally energized UVR-C 110-127 V AC / 1SDA066398R1 1 0.14
110-125 V DC
Normally energized UVR-C 220-240 V AC / 1SDA066399R1 1 0.14
220-250 V DC
Normally energized UVR-C 380-440 V AC 1SDA066400R1 1 0.14
Normally energized UVR-C 480-525 V AC 1SDA066401R1 1 0.14

Suitable Description Type Order code Pkg Weight
for qty (1 pce)
pcs kg
Key locks
MS5100 Key lock on the circuit breaker, KLC Ronis 1) 1SDA066599R1 1 NA
different keys, removable in open
position
MO5100 Key lock on the circuit breaker, KLC Ronis 1) 1SDA066593R1 1 NA
different keys, removable in open
position 2CDC131115C0201
UL Listed
1)

ABB | 2/47
