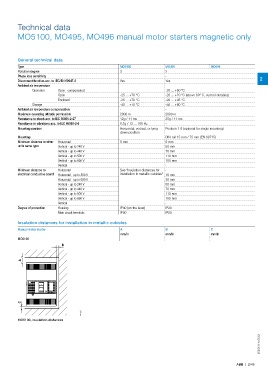

Technical data

MO5100, MO495, MO496 manual motor starters magnetic only

General technical data
Type MO5100 MO495 MO496
Pollution degree 3 3
Phase loss sensitivity -
Disconnect function acc. to IEC/EN 60947-2 Yes Yes 2
Ambient air temperature
Operation Open - compensated - -20 ... +60 °C
Open -25 ... +70 °C -20 ... +70 °C (above 60° C, current derating)
Enclosed -25 ... +70 °C -20 ... +35 °C
Storage -40 ... +70 °C -50 ... +80 °C
Ambient air temperature compensation - -
Maximum operating altitude permissible 2000 m 2000 m
Resistance to shock acc. to IEC 60068-2-27 12g / 11 ms 25g / 11 ms
Resistance to vibrations acc. to IEC 60068-2-6 0.7g / 13 ... 100 Hz -
Mounting position Horizontal, vertical, or lying Position 1-6 (optional for single mounting)
down position
Mounting - DIN-rail 15 mm / 75 mm (EN 60715)
Minimum distance to other Horizontal 0 mm 0 mm
units same type Vertical - up to 240 V 50 mm
Vertical - up to 440 V 70 mm
Vertical - up to 500 V 110 mm
Vertical - up to 690 V 150 mm
Vertical -
Minimum distance to Horizontal See "Insulation distances for -
electrical conductive board Horizontal - up to 500 V installation in metallic cubicles" 10 mm
Horizontal - up to 690 V 30 mm
Vertical - up to 240 V 50 mm
Vertical - up to 440 V 70 mm
Vertical - up to 500 V 110 mm
Vertical - up to 690 V 150 mm
Vertical -
Degree of protection Housing IP40 (on the lever) IP20
Main circuit terminals IP00 IP20

Insulation distances for installation in metallic cubicles
Manual motor starter A B C
mm/in mm/in mm/in
MO5100

imm_A
MO5100, insulation distances

2CDC131114C0201
