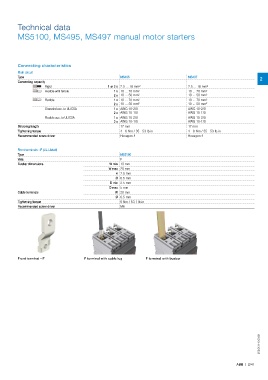

Technical data

MS5100, MS495, MS497 manual motor starters

Connecting characteristics
Main circuit
Type MS495 MS497 2
Connecting capacity
Rigid 1 or 2 x 2.5 ... 16 mm² 2.5 ... 16 mm²
Flexible with ferrule 1 x 10 ... 70 mm² 10 ... 70 mm²
2 x 10 ... 50 mm² 10 ... 50 mm²
Flexible 1 x 10 ... 70 mm² 10 ... 70 mm²
2 x 10 ... 50 mm² 10 ... 50 mm²
Stranded acc. to UL/CSA 1 x AWG 10-2/0 AWG 10-2/0
2 x AWG 10-1/0 AWG 10-1/0
Flexible acc. to UL/CSA 1 x AWG 10-2/0 AWG 10-2/0
2 x AWG 10-1/0 AWG 10-1/0
Stripping length 17 mm 17 mm
Tightening torque 4 - 6 Nm / 35 - 53 Ib.in 4 - 6 Nm / 35 - 53 Ib.in
Recommended screw driver Hexagon 4 Hexagon 4

Front terminals - F (UL Listed)
Type MS5100
Vers. F
Busbar dimensions W min 13 mm
W max 20 mm
H 7.5 mm
Ø 6.5 mm
D min 2.5 mm
D max 5 mm
Cable terminals W 20 mm
Ø 6.5 mm
Tightening torque 6 Nm / 53.1 Ib.in
Recommended screw driver M6

Front terminal - F F terminal with cable lug F terminal with busbar

2CDC131113C0201

ABB | 2/41
