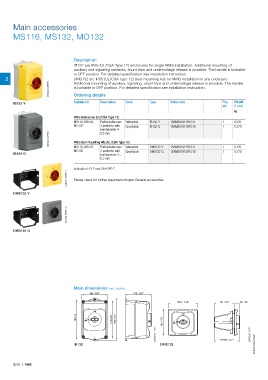

Page 44 - Motor_protection_and_control_Manual_motor_starters_ contactors

Main accessories

MS116, MS132, MO132

Description
IB132 are IP65 (UL/CSA Type 12) enclosures for single MMS installation. Additional mounting of
auxiliary and signaling contacts, shunt trips and undervoltage release is possible. The handle is lockable
in OFF position. For detailed specification see installation instruction.
2 DMS132 are IP65 (UL/CSA Type 12) door mounting kits for MMS installation in any enclosure.
2CDC241004F0010 is lockable in OFF position. For detailed specification see installation instruction.
Additional mounting of auxiliary, signaling, shunt trips and undervoltage release is possible. The handle

Ordering details
Suitable for Description Color Type Order code Pkg Weight
IB132-Y
qty (1 pce)
kg
IP65 enclosures (UL/CSA Type 12)
MS116, MS132, Padlockable max. Yellow/red IB132-Y 1SAM201911R1011 1 0.370
MO132 3 padlocks with Grey/black IB132-G 1SAM201911R1010 1 0.370
bail diameter 4 ...
2CDC241003F0010 IP65 door mounting kits (UL/CSA Type 12)
6.5 mm

MS116, MS132,
MO132 Padlockable max. Yellow/red DMS132-Y 1SAM201912R1011 1 1 0.170
3 padlocks with
DMS132-G
1SAM201912R1010
0.170
Grey/black
IB132-G bail diameter 4 ...
6.5 mm
Indication I-O-T and ON-OFF-T
2CDC241002F0010 Please check for further equipment chapter General accessories.

DMS132-Y

2CDC241001F0010

DMS132-G

Main dimensions mm, inches
118 4.65" 119 4.69"
135.7 5.34" 92 3.62" 24 .94"

I ON I ON
183 7.2" OFF 174 6.85" 194 7.64" 4.76" 121 OFF 0
0
2CDC242011F0011 2CDC242012F0011

IB132 DMS132 116.15 4.57" 2CDC131050C0201

2/36 | ABB
