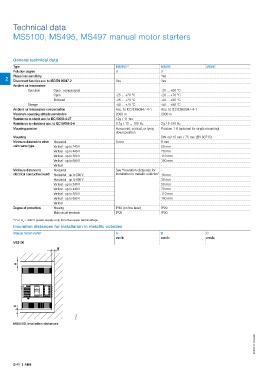

Technical data

MS5100, MS495, MS497 manual motor starters

General technical data
Type MS5100 1) MS495 MS497
Pollution degree 3 3
Phase loss sensitivity Yes
2 Disconnect function acc. to IEC/EN 60947-2 Yes Yes
Ambient air temperature
Operation Open - compensated - -20 ... +60 °C
Open -25 ... +70 °C -20 ... +70 °C
Enclosed -25 ... +70 °C -20 ... +35 °C
Storage -40 ... +70 °C -50 ... +80 °C
Ambient air temperature compensation Acc. to IEC/EN60947-4-1 Acc. to IEC/EN60947-4-1
Maximum operating altitude permissible 2000 m 2000 m
Resistance to shock acc. to IEC 60068-2-27 12g / 11 ms -
Resistance to vibrations acc. to IEC 60068-2-6 0.7g / 13 ... 100 Hz 2g / 5-150 Hz
Mounting position Horizontal, vertical, or lying Position 1-6 (optional for single mounting)
down position
Mounting - DIN-rail 15 mm / 75 mm (EN 60715)
Minimum distance to other Horizontal 0 mm 0 mm
units same type Vertical - up to 240 V 50 mm
Vertical - up to 440 V 70 mm
Vertical - up to 500 V 110 mm
Vertical - up to 690 V 150 mm
Vertical -
Minimum distance to Horizontal See "Insulation distances for -
electrical conductive board Horizontal - up to 500 V installation in metallic cubicles" 10 mm
Horizontal - up to 690 V 30 mm
Vertical - up to 240 V 50 mm
Vertical - up to 440 V 70 mm
Vertical - up to 500 V 110 mm
Vertical - up to 690 V 150 mm
Vertical -
Degree of protection Housing IP40 (on the lever) IP20
Main circuit terminals IP00 IP00
For U > 440 V power supply only from the upper terminal/lugs
1)
e
Insulation distances for installation in metallic cubicles
Manual motor starter A B C
mm/in mm/in mm/in
MS5100

imm_A
MS5100, insulation distances

2CDC131113C0201
