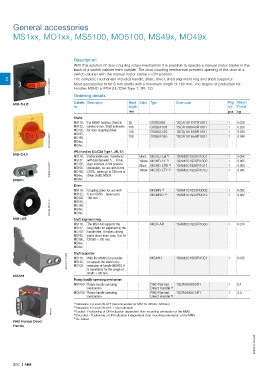

Page 60 - Motor_protection_and_control_Manual_motor_starters_ contactors

General accessories

MS1xx, MO1xx, MS5100, MO5100, MS49x, MO49x

Description
With this solution of door coupling rotary mechanism it is possible to operate a manual motor starter in the
back of a switch cabinet from outside. The door coupling mechanism prevents opening of the door of a
switch cabinet with the manual motor starter in ON position.
2 The complete mechanism includes handle, shaft, driver, shaft alignment ring and shaft supporter.
2CDC241003F0011 Most accessories fit for 6 mm shafts with a maximum length of 180 mm. The degree of protection for
handles MSHD is IP64 (UL/CSA Type 1, 3R, 12).
Ordering details
Suitable Description Shaft Color Type Order code Pkg Weight
MSHD-LB
for length qty (1 pce)
mm pcs kg
Shafts
MS116, For MSHD handles. Shaft di- 85 OXS6X85 1SCA101647R1001 1 0.020
MS132, ameter 6 mm. Shaft extension 105 OXS6X105 1SCA108043R1001 1 0.020
MO132, for door coupling driver. 130 OXS6X130 1SCA101655R1001 1 0.030
2CDC241002S0011 MO165, 180 OXS6X180 1SCA101659R1001 1 0.040
MS165,
MS4xx,
MO4xx
IP64 handles (UL/CSA Type 1, 3R, 12)
MSHD-LY 1)
MS116, Padlockable max. 3 padlocks Black MSHD-LB 1SAM201920R1001 1 0.065
MS132, with bail diameter 5 … 8 mm, Yellow MSHD-LY 1) 1SAM201920R1002 1 0.065
2CDC241004F0011 MS165, defeatable, for use with 6 mm Black MSHD-LTB 2) 2) 1SAM201920R1011 1 1 0.065
MO132, door interlock in ON position
1SAM201920R1012
0.065
Yellow MSHD-LTY
MO165, OXS6…types up to 180 mm or
MO4xx
MSMN MS4xx, driver shafts MSOX.
Driver
MS116, Coupling driver for use with MSMN 3) 1SAM101923R0002 1 0.002
MS132, 6 mm OXS6… types up to MSMNO 4) 1SAM101923R0012 1 0.002
MO132, 180 mm.
MS165,
2CDC241001F0012 MO165,
MS4xx,
MO4xx
MSH-AR Shaft alignment ring
MS116, The MSH-AR supports the MSH-AR 1SAM201920R1000 1 0.010
MS132, long shafts for alignment to the
MO132, handle inlet. It makes closing
MS165, panel doors more easy. Use for
MO165, OXS6X > 105 mm.
MS4xx,
MO4xx
Shaft supporter
2CDC241017V0013 MS116, With the MSAH it is possible MSAH1 1SAM201909R1021 1 0.035
MS132, to support the shaft in the
extension of handle (MSHD). It
MO132
is mandatory for the usage of
shafts >130 mm.
MSAH1
Rotary handle operating mechanism
MS5100 Rotary handle operating RHD Normal 1SDA069053R1 1 0.4
mechanism Direct Handle 5)
MO5100 Rotary handle operating RHD Normal 1SDA066475R1 1 0.4
mechanism Direct Handle 5)
Indication I-O and ON-OFF (recommended for MS116, MS4xx, MO4xx)
1)
2) Indication I-O and ON-OFF + Trip indication
RHD-01 3) Coded - Positioning of ON indication dependent from mounting orientation of the MMS
Uncoded - Positioning of ON indication independent from mounting orientation of the MMS
4)
5) UL Listed
RHD Normal Direct
Handle
2CDC131116C0201

2/52 | ABB
