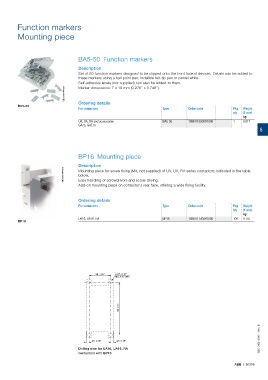

Page 595 - Motor_protection_and_control_Manual_motor_starters_ contactors

Function markers

Mounting piece

BA5-50 Function markers

Description
Set of 50 function markers designed to be clipped onto the front face of devices. Details can be added to
these markers using a ball point pen, indelible felt-tip pen or pentel white.
Self-adhesive labels (not supplied) can also be added to them.
Marker dimensions: 7 x 19 mm (0.276" x 0.748").
1SBC575874F0301

BA5-50 Ordering details
For contactors Type Order code Pkg Weight
qty (1 pce)
kg
UA, UA..RA and accessories BA5-50 1SBN110000R1000 1 0.017
GA75, GAE75
5

BP16 Mounting piece

Description
1SBC586724F0302 Mounting piece for screw fixing (M4, not supplied) of UA, UA..RA series contactors indicated in the table
below.
Easy handling of screwdrivers and screw driving.
Add-on mounting piece on contactor's rear face, offering a wide fixing facility.

Ordering details
For contactors Type Order code Pkg Weight
qty (1 pce)
kg
UA16, UA16..RA BP16 1SBN111403R1000 100 0.141
BP16

35 1.38" ø 4.5 0.18"
M4 8-32 UNC

84 3.31"

1SBC101531S0201 - Rev. B

4.5 0.18" 4.5 0.18"
Drilling plan for UA16, UA16..RA
contactors with BP16

ABB | 5/395
