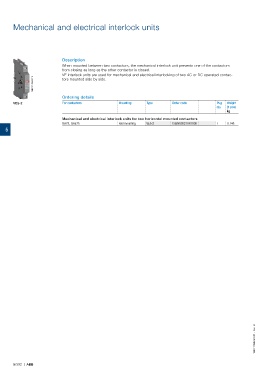

Mechanical and electrical interlock units








                             Description
                             When mounted between two contactors, the mechanical interlock unit prevents one of the contactors
                             from closing as long as the other contactor is closed.
                             VE interlock units are used for mechanical and electrical interlocking of two AC or DC operated contac-
                1SBC101429F0014
                             tors mounted side by side.


                             Ordering details
       VE5-2                 For contactors           Mounting    Type       Order code          Pkg   Weight
                                                                                                 qty  (1 pce)
                                                                                                      kg
                             Mechanical and electrical interlock units for two horizontal mounted contactors
                             GA75, GAE75              Rail mounting  VE5-2   1SBN030210R1000     1    0.146
    5





















































                                                                                                                  1SBC101525S0201 - Rev. B








       5/392  |  ABB
