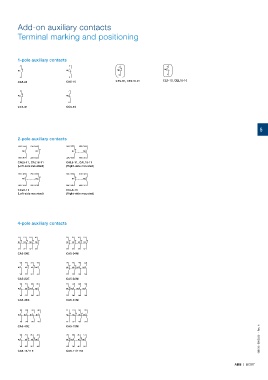

Add-on auxiliary contacts

Terminal marking and positioning

1-pole auxiliary contacts
-1 -3 -3
-1
NC NO NC NO
-2 -4
-2 -4
CA5-01 CA5-10 CE5-01, CEL18-01 CE5-10, CEL18-10
-5 -7
NC NO
-6 -8
CC5-01 CC5-10

5

2-pole auxiliary contacts
13X / 44X 21X / 32X 31X / 22X 43X / 14X
NO NC NC NO
14X / 43X 22X / 31X 32X / 21X 44X / 13X
CAL5-11, CAL18-11 CAL5-11, CAL18-11
(Left-side mounted) (Right-side mounted)
17X / 48X 25X / 36X 35X / 26X 47X / 18X
NO NC NC NO
18X / 47X 26X / 35X 36X / 25X 48X / 17X
CCL5-11 CCL5-11
(Left-side mounted) (Right-side mounted)

4-pole auxiliary contacts

11 21 31 41 21 31 41 51
NC NC NC NC NC NC NC NC
12 22 32 42 22 32 42 52
CA5-04E CA5-04M
13 21 31 43 21 31 43 53
NO NC NC NO NC NC NO NO
14 22 32 44 22 32 44 54
CA5-22E CA5-22M
13 21 33 43 21 33 43 53
NO NC NO NO NC NO NO NO
14 22 34 44 22 34 44 54
CA5-31E CA5-31M

13 23 33 43 21 31 41 53
NO NO NO NO NC NC NC NO
14 24 34 44 22 32 42 54
CA5-40E CA5-13M
13 21 35 47 21 33 45 57
NO NC NC NO NC NO NC NO 1SBC101586S0201 - Rev. A
14 22 36 48 22 34 46 58
CA5-11/11E CA5-11/11M

ABB | 5/387
