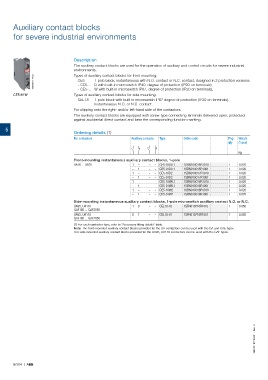

Auxiliary contact blocks

for severe industrial environments

Description
The auxiliary contact blocks are used for the operation of auxiliary and control circuits for severe industrial
environments.
Types of auxiliary contact blocks for front mounting:
1SBC581011F0301 – CE5 1-pole block, instantaneous with N.O. contact or N.C. contact, designed in 2 protection versions:
- CE5-.. D with built-in microswitch IP40, degree of protection (IP20 on terminals)
- CE5-.. W with built-in microswitch IP67, degree of protection (IP20 on terminals).
CE5-01W Types of auxiliary contact blocks for side mounting:
– CEL18 1-pole block with built-in microswitch IP67 degree of protection (IP20 on terminals).
Instantaneous N.O. or N.C. contact.
For clipping onto the right- and/or left-hand side of the contactors.
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected
against accidental direct contact and bear the corresponding function marking.

5
Ordering details (1)
For contactors Auxiliary contacts Type Order code Pkg Weight
qty (1 pce)

kg
Front-mounting instantaneous auxiliary contact blocks, 1-pole
UA16 ... UA75 1 – – – CE5-10D0.1 1SBN010015R1010 1 0.020
– 1 – – CE5-01D0.1 1SBN010015R1001 1 0.020
1 – – – CE5-10D2 1SBN010017R1010 1 0.020
– 1 – – CE5-01D2 1SBN010017R1001 1 0.020
1 – – – CE5-10W0.1 1SBN010016R1010 1 0.020
– 1 – – CE5-01W0.1 1SBN010016R1001 1 0.020
1 – – – CE5-10W2 1SBN010018R1010 1 0.020
– 1 – – CE5-01W2 1SBN010018R1001 1 0.020
Side-mounting instantaneous auxiliary contact blocks, 1-pole microswitch auxiliary contact N.O. or N.C.
UA95, UA110 1 0 – – CEL18-10 1SFN010716R1010 1 0.050
GAF185 ... GAF2050
UA95, UA110 0 1 – – CEL18-01 1SFN010716R1001 1 0.050
GAF185 ... GAF2050
(1) For each contactor type, refer to "Accessory fitting details" table.
Note: The front-mounted auxiliary contact blocks provided for the UA contactors can be used with the GA and GAE types.
The side-mounted auxiliary contact blocks provided for the UA95, UA110 contactors can be used with the GAF types.
