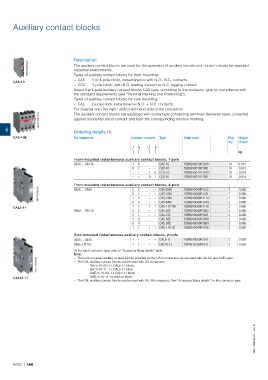

Auxiliary contact blocks

Description
1SBC580992F0301 The auxiliary contact blocks are used for the operation of auxiliary circuits and control circuits for standard
industrial environments.
Types of auxiliary contact blocks for front mounting:
– CA5 1 or 4-pole block, instantaneous with N.O., N.C. contacts
CA5-10
– CC5 1-pole block, with N.O. leading contact or N.C. lagging contact.
Select the 4-pole auxiliary contact blocks CA5 type, according to the contactor type for compliance with
the standard requirements (see "Terminal Marking and Positioning").
Types of auxiliary contact blocks for side mounting:
– CAL 2-pole block instantaneous N.O. + N.C. contacts.
For clipping onto the right- and/or left-hand side of the contactors.
The auxiliary contact blocks are equipped with screw type connecting terminals delivered open, protected
1SBC573794F0302 against accidental direct contact and bear the corresponding function marking.

5 Ordering details (1)

CA5-40E For contactors Auxiliary contacts Type Order code Pkg Weight
qty (1 pce)

kg
Front-mounted instantaneous auxiliary contact blocks, 1-pole
UA16 ... UA110 1 0 – – CA5-10 1SBN010010R1010 10 0.014
0 1 – – CA5-01 1SBN010010R1001 10 0.014
– – 1 0 CC5-10 1SBN010011R1010 10 0.014
– – 0 1 CC5-01 1SBN010011R1001 10 0.014

Front-mounted instantaneous auxiliary contact blocks, 4-pole 1SBN010040R1122 2 0.060
1SBC573752F0301 3 1 1 3 – – – – CA5-31M 1SBN010040R1131 2 2 0.060
UA16 ... UA30
CA5-22M
2
–
–
2
CA5-13M
1SBN010040R1113
0.060
0.060
1SBN010040R1118
CA5-11/11M
CAL5-11 0 1 4 1 – 1 1 – CA5-04M 1SBN010040R1104 2 2 0.060
UA50 ... UA110 2 2 – – CA5-22E 1SBN010040R1022 2 0.060
3 1 – – CA5-31E 1SBN010040R1031 2 0.060
4 0 – – CA5-40E 1SBN010040R1040 2 0.060
0 4 – – CA5-04E 1SBN010040R1004 2 0.060
1 1 1 1 CA5-11/11E 1SBN010040R1018 2 0.060
Side-mounted instantaneous auxiliary contact blocks, 2-pole
UA16 ... UA75 1 1 – – CAL5-11 1SBN010020R1011 2 0.050
UA95, UA110 1 1 – – CAL18-11 1SFN010720R1011 2 0.050
(1) For each contactor type, refer to "Accessory fitting details" table.
Note:
– The front-mounted auxiliary contact blocks provided for the UA75 contactors can be used with the GA and GAE types
1SFC101033F0201 – The CAL auxiliary contact blocks can be used with GA contactors:
GA75-10-00: 2 x CAL5-11 blocks
GA75-10-11: 1 x CAL5-11 block
GAE75-10-11: no add-on block.
CAL18-11 GAE75-10-00: 1 x CAL5-11 block
– The CAL auxiliary contact blocks can be used with UA..RA contactors. See "Accessory fitting details" for this contactor type.
