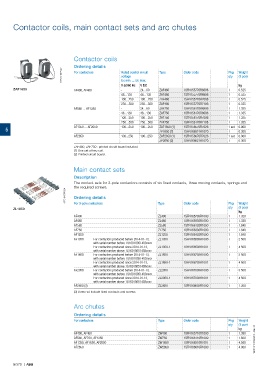

Contactor coils, main contact sets and arc chutes

Contactor coils

Ordering details
1SFC101007F0201 For contactors Rated control circuit Type Order code Pkg Weight
voltage
(1 pce)
qty
Uc min. ... Uc max.
V 50/60 Hz V DC kg
ZAF1650 AF400, AF460 - 24…60 ZAF460 1SFN155770R6806 1 0.525
48…130 48…130 ZAF460 1SFN155770R6906 1 0.525
100…250 100…250 ZAF460 1SFN155770R7006 1 0.525
250…500 250…500 ZAF460 1SFN155770R7106 1 0.525
AF580 ... AF1250 - 24…60 ZAF750 1SFN156170R6806 1 1.335
48…130 48…130 ZAF750 1SFN156170R6906 1 1.335
100…250 100…250 ZAF750 1SFN156170R7006 1 1.335
250…500 250…500 ZAF750 1SFN156170R7106 1 1.335
5 AF1350 ... AF2050 100…250 100…250 ZAF1650 (1) 1SFN156570R7026 1 set 0.900
0.300
1
ZP1650 (2)
1SFN166521R1070
AF2650 100...250 100...250 ZAF2650 (1) 1SFN156670R7026 1 set 0.900
ZP2650 (2) 1SFN166621R1070 1 0.300
ZAF460, ZAF750 : printed circuit board included.
(1) One set of two coil.
(2) Printed circuit board.
Main contact sets
Description
The contact sets for 3-pole contactors consists of six fixed contacts, three moving contacts, springs and
the required screws.
1SFC101009F0201 Ordering details

Type
Pkg
For 3-pole contactors
Order code
qty Weight
(1 pce)
ZL1650
kg
AF400 ZL400 1SFN165703R1000 1 1.320
AF460 ZL460 1SFN165903R1000 1 1.320
AF580 ZL580 1SFN166103R1000 1 1.840
AF750 ZL750 1SFN166303R1000 1 1.840
AF1250 ZL1250 1SFN166403R1000 1 1.840
AF1350 For contactors produced before 2014-01-13, ZL1350 1SFN166503R1000 1 2 500
with serial number before 1S16010051403xxxx
For contactors produced since 2014-01-13, ZL1350-1 1SFN166503R1001 1 4 500
with serial number above 1S16010051403xxxx
AF1650 For contactors produced before 2014-01-13, ZL1650 1SFN166703R1000 1 3 500
with serial number before 1S16010051403xxxx
For contactors produced since 2014-01-13, ZL1650-1 1SFN166703R1001 1 4 500
with serial number above 1S16010051403xxxx
AF2050 For contactors produced before 2014-01-13, ZL2050 1SFN167003R1000 1 3 500
with serial number before 1S16010051403xxxx
For contactors produced since 2014-01-13, ZL2050-1 1SFN167003R1001 1 4 500
with serial number above 1S16010051403xxxx
AF2650 (3) ZL2650 1SFN166603R1000 1 1.200
(3) Does not include fixed contacts and screws.
Arc chutes
Ordering details
For contactors Type Order code Pkg Weight
qty (1 pce)
kg
AF400, AF460 ZW460 1SFN165710R1000 1 1.380
AF580, AF750, AF1250 ZW750 1SFN166110R1000 1 1.500 1SFC101137C0201 - Rev. D
AF1350, AF1650, AF2050 ZW1650 1SFN166510R1001 1 4.560
AF2650 ZW2650 1SFN166610R1000 1 4.000

5/378 | ABB
